Digital Laboratory Shaker Vortex Mixer Orbital Motion

Place of Origin:	Zhengzhou
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	NB-S/NB-E

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Frequency [Hz:	2	Mixing Motion:	Orbital
Motor Rating Output:	10W	Allowable Environment Temperature:	5-40 °C
Permissible Ambient Temperature:	≤80%RH
High Light:	60 HZ Laboratory Shaker Vortex Mixer , 50HZ Laboratory Shaker Vortex Mixer , 60HZ lab vortex shaker

Product Description

Laboratory Shaker Vortex Mixers

Key Specifications/Special Features:

The Vortex Mixers is suitable for molecular biology, virology, microbiology, pathology, immunology and other laboratories in scientific research units, medical schools, emergency control centers, and medical and health units.

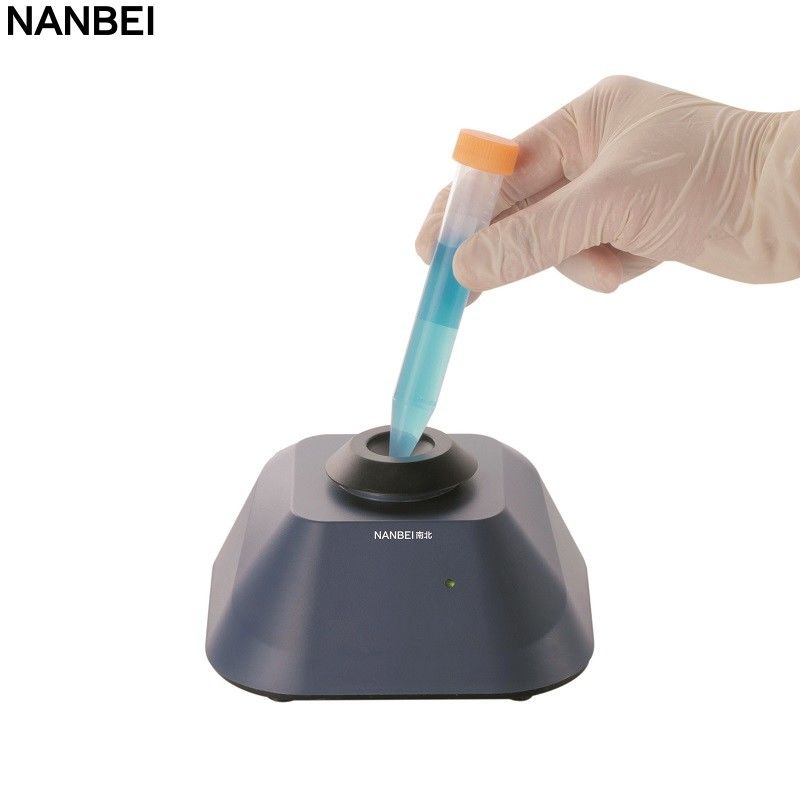

Vortex Mixers NB-E
Features:
• For small amount of sample mix;
• Touch operation;
• Fixed speed: 3000rpm;
• Small and beautiful;
• DC brushless motor, stable performance.

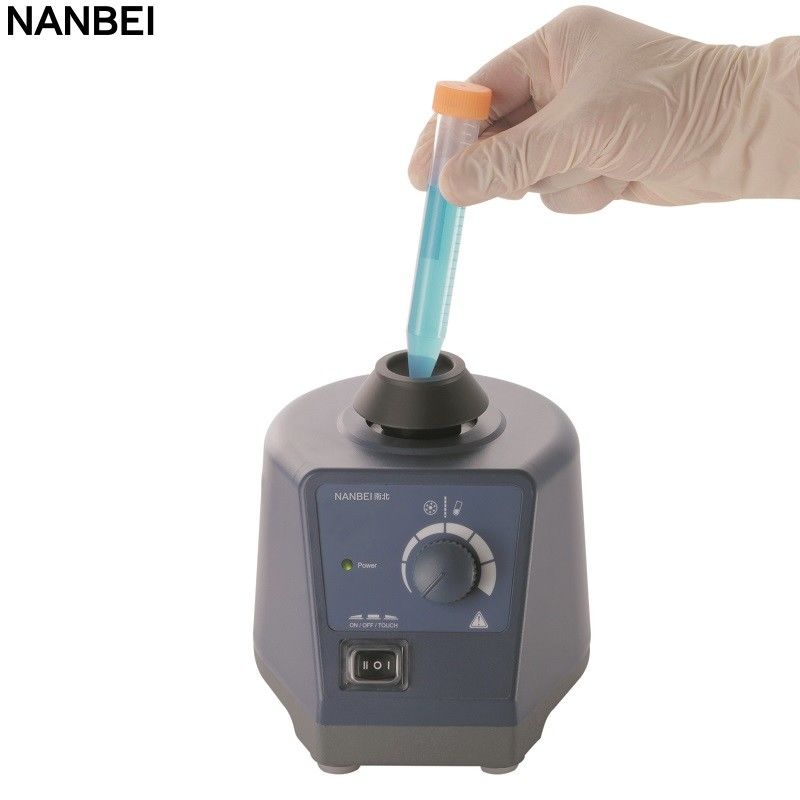

Vortex Mixers NB-S
Key Features:
• Touch operation or continuous mode
• Variable speed control from 0 to 2500rpm
• Used for various mixing applications with optional adapters
• Specially designed vacuum suction feet for body stablility
• Robust aluminum-cast construction

Specifications	NB-E	NB-S
Power supply [VAC]	100-240
Frequency [Hz]	50/60	50/60
Power [W]	12	60W
Mixing motion	Orbital	Orbital
Revolving diameter [mm]	4.8
Motor rating output[W]	10w	10W
Rotational speed [rpm]	3000
Operating mode	Inching
External dimension [mm]	133×133×80
Dimension of packing box [mm]	250×185×130
Weight [kg]	0.6	3.5kg
Allowable environment temperature	5-40 °C	5-40 °C
Permissible Ambient Temperature	≤80%RH	80%RH
Protection class	IP21	IP21
Motor type		Shaded pole motor
Motor rating input		58W
Orbital diameter		4mm
Speed range		0-2500rpm
Speed display		Scale
Run type		Touch operation/Continuous
Voltage		110-120V/220-230V,50/60Hz
Dimension[W×H×D]		127×130×160mm

Order Info
Cat. No.	P/N	Descriptions&Power supply
8031102000	NB-S	Vortex Mixer (adjustable speed)Cn plug, 220/50Hz Vortex Mixer (adjustable speed)Cn plug, 220/60Hz Vortex Mixer (adjustable speed)USA pug, 110/50Hz Vortex Mixer (adjustable speed)USA pug, 110/60Hz Vortex Mixer (adjustable speed)Euro plug, 220/50Hz Vortex Mixer (adjustable speed)Euro plug, 220/60Hz Vortex Mixer (adjustable speed)UK plug, 220/50Hz Vortex Mixer (adjustable speed)UK plug, 220/60Hz
8031211000	NB-E	Vortex Mixer (Fixed speed)USA plug,100V-220V/50Hz/60Hz Vortex Mixer (Fixed speed)Cn plug,100V-220V/50Hz/60Hz Vortex Mixer (Fixed speed)Euro plug,100V-220V/50Hz/60Hz Vortex Mixer (Fixed speed)UK plug,100V-220V/50Hz/60Hz

NB-E:

Digital Laboratory Shaker Vortex Mixer Orbital Motion 0

NB-S:
