Place of Origin: | Zhengzhou |
---|---|
Brand Name: | NANBEI |
Certification: | CE,ISO,SGS |
Model Number: | NB-R30D-E/NB-R30L-E/NB-R30D-E |
Minimum Order Quantity: | 1 set |
Packaging Details: | Wooden case |
Delivery Time: | 7 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 SET PER MONTH |
Tilt Angle: | 30±3° | Motor Type: | Brushless DC Motor |
---|---|---|---|
Weight: | 2.3KG | Operation Mode: | Continuous |
Voltage: | 100~240V, 50/60Hz | Speed Range[rpm: | 2 |
High Light: |
30RPM Laboratory Shaker,Electric Laboratory Shaker,30RPM Rocking Incubator Rotator |

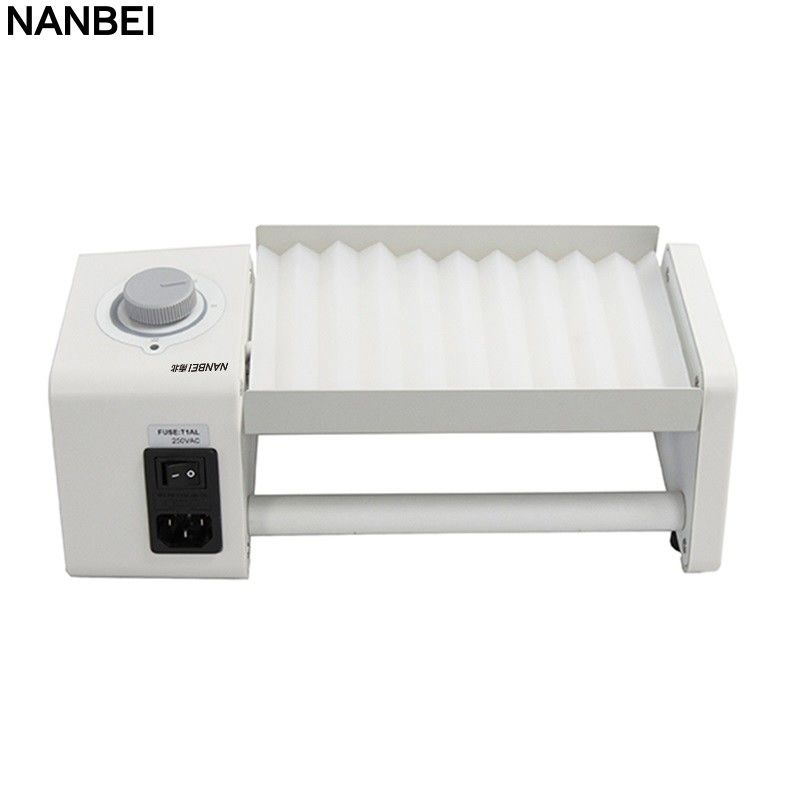

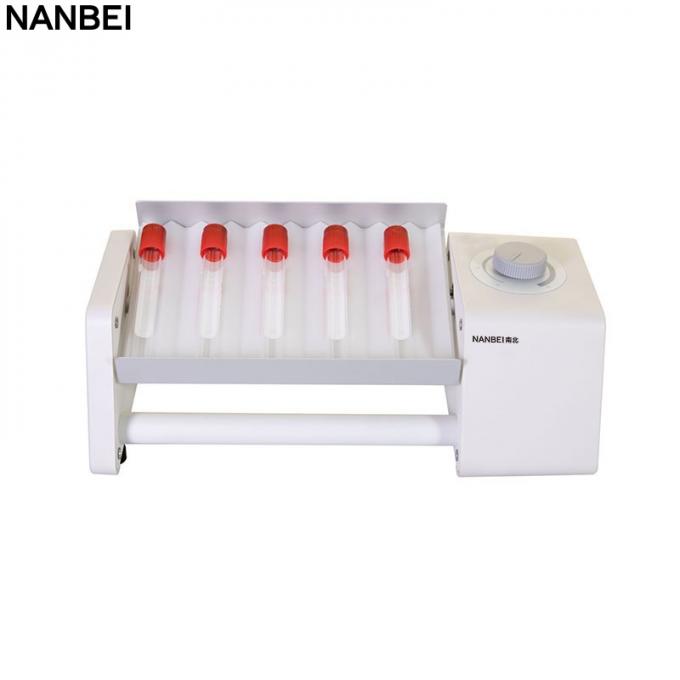

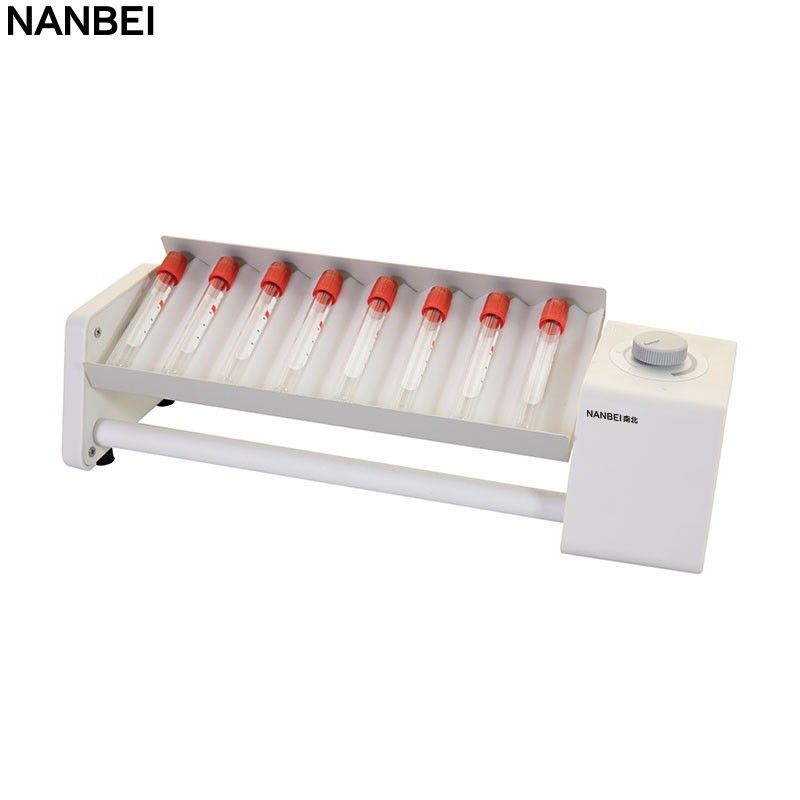

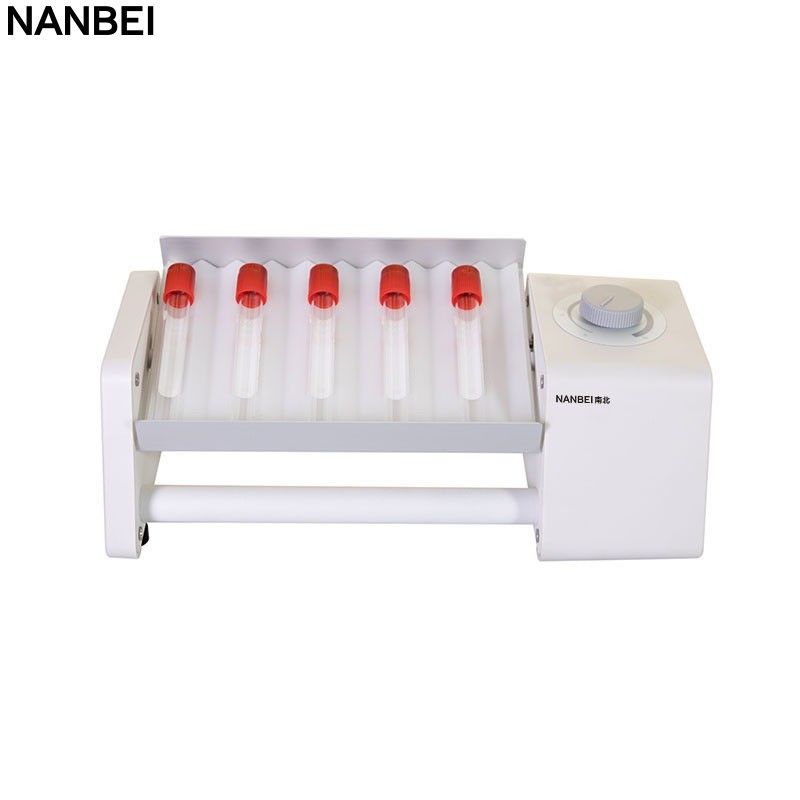

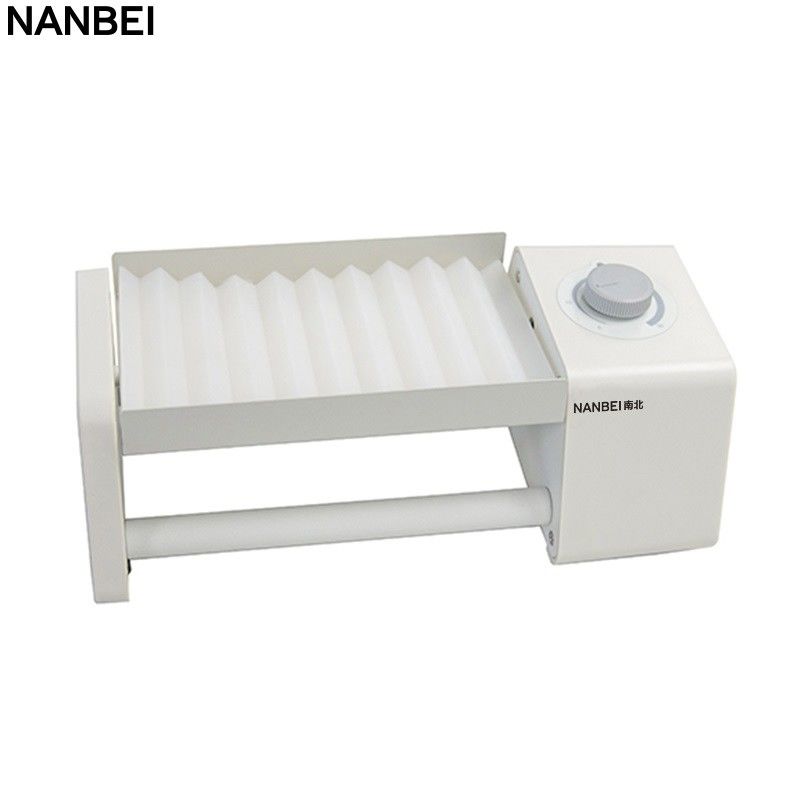

Digital Deck Rocking Rotator Shaker Incubator
Introduction:
Rocking Rotator is a common laboratory instrument and equipment, mainly used for bacterial culture, fermentation, hybridization, biochemical reaction and enzyme, cell tissue culture research, in medicine, biology, molecular, pharmaceutical, food, environment and other industries Wide range of applications.
Application:
* Escherichia coli culture: It grows quickly and is not easily destroyed under high-speed conditions. After the growth period, the temperature needs to be cooled to stop bacterial growth and maintain activity. Culture conditions: 30-35°C, 6-8 hours. Need refrigeration.
* Mammalian cell culture: It is easily damaged by mechanical force and needs to be cultured at low speed, 5% CO2, and 37 degrees.
* Plant cell culture: slow growth, long culture time, culture under low humidity conditions, light circadian rhythm conditions are very important. Need refrigeration and light.
* Yeast cell culture: easy to grow, high yield, high humidity and vibration requirements, anaerobic conditions are required.
* Requires refrigeration and cultivation at 28°C.
* Fungal culture: The viscous medium reduces the oxygen transfer rate and is unfavorable for fungal growth. The culture does not exceed 20% of the volume of the culture flask.
* Virus culture (insect cell culture): To ensure safety, insect viruses are mostly used, and insect cell culture is first performed. Incubate at 27-28°C for 1-2 days.
Specification:
Specifications | NB-R30L-E |
NB-R30L-E |
NB-R30S-E |
Feature | It can accommodate up to 16 × 5~10ml blood vessels,or 6× 50ml tubes, with different silicon mattress accessories. | It can accommodate up to 10 × 5~10ml blood vessels,or 4 × 50ml tubes, with different silicon mattress accessories. |

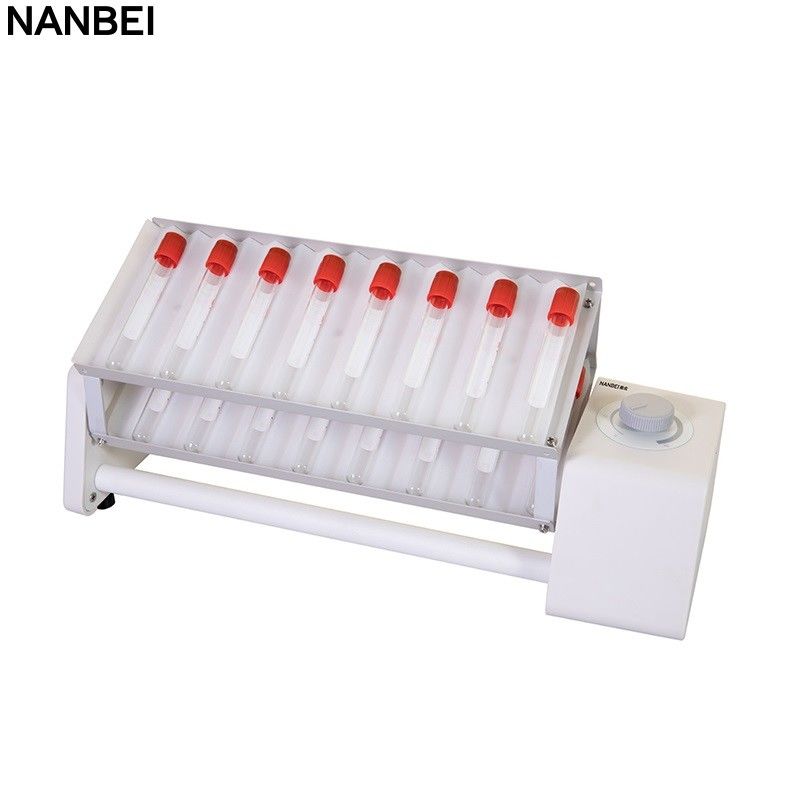

• It can accommodate up to 16 × 5~10ml blood vessels, or 6× 50ml tubes on each of the two layers with different silicon mattress accessories.
• Tilt angle up to 40°.
|
Tilt angle | 30±3° | 30±3° | 40±3° |
Load capacity | 1kg | 1kg | 1kg |
Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor |
Speed range[rpm] | 0~30 | 0~30 | 0~30 |
Operation mode | Continuous | Continuous | Continuous |
Dimension (W×D ×H) | 405×160×120mm | 295×160×120mm | 405×160×160mm |
Voltage | 100~240V, 50/60Hz | 100~240V, 50/60Hz | 100~240V, 50/60Hz |
Power | 15W | 15W | 15W |
Weight | 2kg | 1.8kg | 2.2kg |
Permissible ambient temperature and humidity | 5~40℃, 80% | 5~40℃, 80% | 5~40℃, 80% |
