Laboratory Shaker - Nanbei Instrument Limited

Place of Origin:	Zhengzhou
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	NB-L330-Pro/NB-O330-Pro

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 SET PER MONTH

Detail Information

Motor Type:	Brushless DC Motor	Speed Display:	LCD
Power:	30W	Protection Class:	IP21
Amplitude:	10mm	Data Connector:	RS232
High Light:	Brushless Laboratory Shaker , DC Motor Laboratory Shaker , LCD Digital Linear Shaker

Product Description

Laboratory Double brushless DC motor LCD Digital Linear Shaker

Key Specifications/Special Features:

Biological shaker is a common laboratory equipment, mainly used for bacterial culture, fermentation, hybridization and biochemical reaction, as well as enzyme, cell tissue culture research, in medicine, biology, molecular, pharmaceuticals, food, environment, etc. The industry is widely used.

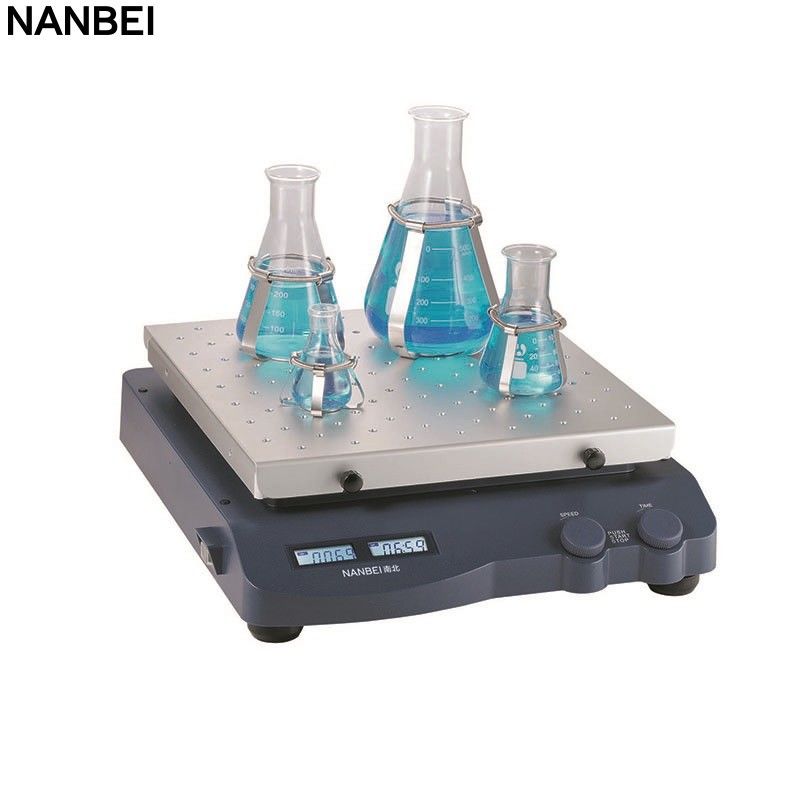

LCD Digital Linear Shaker NB-L330-Pro

Key Features:
• Max. load capacity is 7.5kg(L330) and 2.5kg(L180) with platform.
• Double LCDs for independent display of time and speed.
• Wide range of platforms for use with a variety of vessels.
• Maintenance- free brushless DC motor.
• Over speed detection and protection.

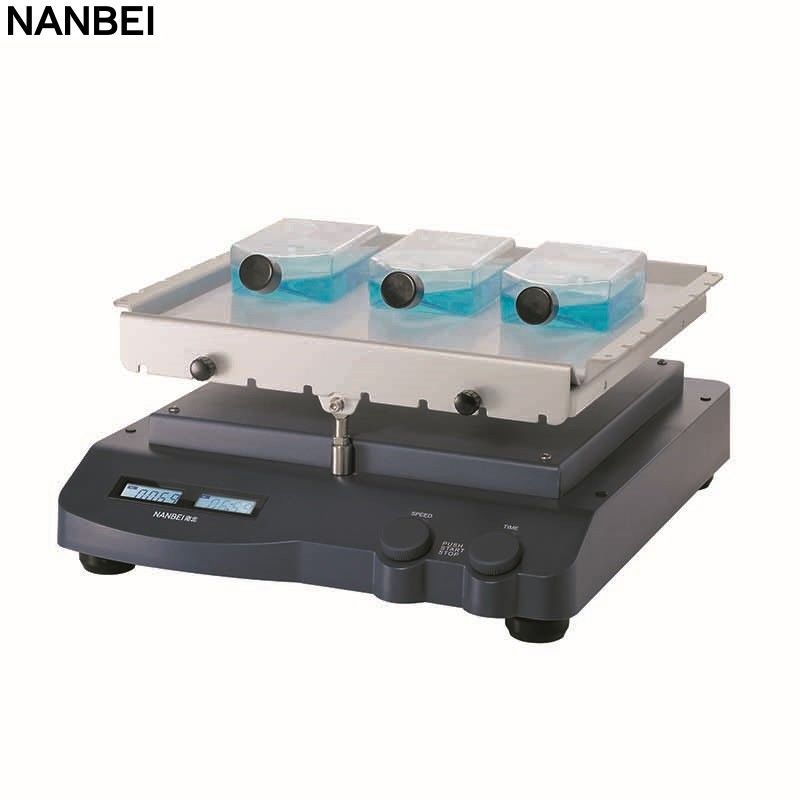

LCD Digital Linear Shaker NB-O330-Pro

Key Features:
• Max. load capacity is 7.5kg(O330) and 2.5kg(O180) with platform
• Double LCDs for independent display of time and speed
• Used with a wide variety of accessories
• Maintenance- free brushless DC motor
• Over speed detection and protection
• Remote function provides PC control and data transmission

Specifications	NB-L330-Pro	NB-O330-Pro
Max. load capacity (with platform)	7.5kg	7.5kg
Motor type	Brushless DC motor	Brushless DC motor
Motor input power	28W	28W
Motor output power	15W	15W
Speed range	100-350rpm	100-500rpm
Speed display	LCD	LCD
Timer display	LCD	LCD
Time settings range	1min-19h59min	1min-19h59min
Voltage	100-240V, 50/60Hz	100-240V,50/60Hz
Power	30W	30W
Weight	13.5kg	13.5kg
Permissible ambient temperature and humidity	5-40°C 80%RH	5-40°C 80%RH
Dimension[W×D×H]	370×420×100mm	370×420×100mm
Protection class	IP21	IP21
Amplitude	10mm	10mm
Data connector	RS232	RS232

Cat.No.

P/N

Descriptions

8032120100

NB-L330-Pro

Digital Linear Shaker (7.5 Kg) with SK 330.1 Universal attachment (package seperately)

USA plug,100V-220V/50Hz/60Hz

Cn plug,100V-220V/50Hz/60Hz

Euro plug,100V-220V/50Hz/60Hz

UK plug,100V-220V/50Hz/60Hz

8032220100

NB-O330-Pro

Digital Orbital Shaker (7.5 Kg) with 330.1 Universal attachment (package seperately)

USA plug,100V-220V/50Hz/60Hz

Cn plug,100V-220V/50Hz/60Hz

Euro plug,100V-220V/50Hz/60Hz

UK plug,100V-220V/50Hz/60Hz

Cat. No.	P/N	Descriptions
18900027	330.1	Universal attachment with 4 bars
18900028	330.2	Fixing clip attachment
18900010	330.3	Lengthways roller attachment
18900155	330.5	Dish platform with non-slip mat and fixed string(8 pcs)
18900036		Bar for 330.1 Universal attachment,black
18900029	330.2.1	Fixing clip for flask volume 25 ml
18900030	330.2.2	Fixing clip for flask volume 50 ml
18900031	330.2.3	Fixing clip for flask volume 100 ml
18900032	330.2.4	Fixing clip for flask volume 200/250 ml
18900033	330.2.5	Fixing clip for flask volume 500 ml
18900280		Connect sticks for double dishes shaker 1/pK

NB-L330-Pro:

Laboratory Medical LCD Digital Linear Shaker 0

NB-O330-Pro:

Laboratory Medical LCD Digital Linear Shaker 1
