Laboratory Shaker - Nanbei Instrument Limited

Place of Origin:	Zhengzhou
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	NB-M

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Shaking Movement:	Orbital	Orbital Diameter:	4.5mm
Maximum Weight(with Accessory):	0.5kg	Motor Type Brushless:	DC Motor
Speed Display:	Scale	Power:	20W
Dimension:	260×150×80mm
High Light:	4.5mm Laboratory Orbital Shaker , 1500rpm Laboratory Orbital Shaker , 1500rpm high speed microplate shaker

Product Description

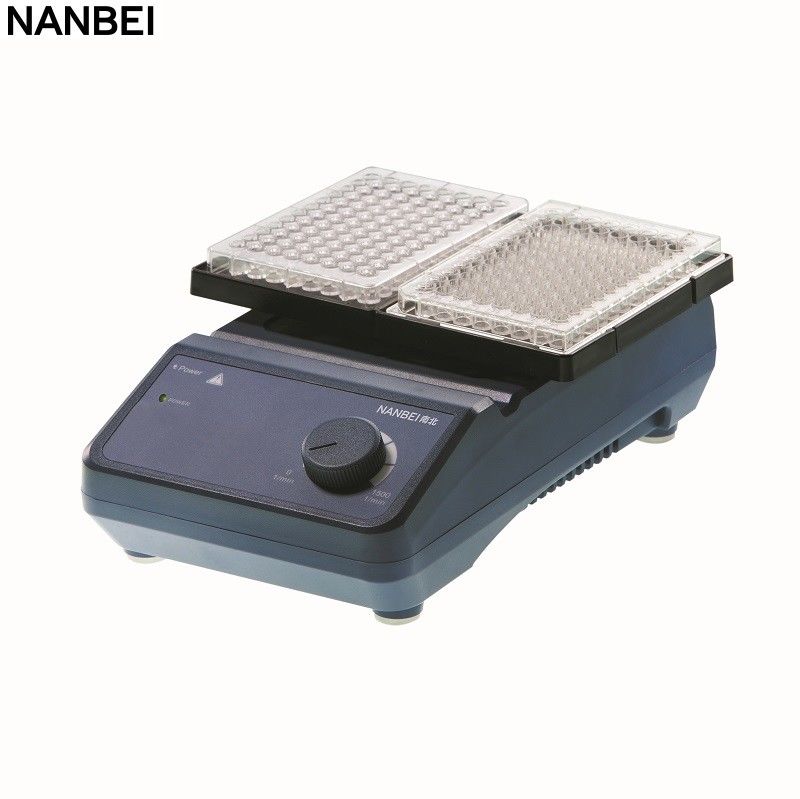

Laboratory Shaker Microplate Mixers

Key Specifications/Special Features:

The Lab Rollers is suitable for molecular biology, virology, microbiology, pathology, immunology and other laboratories in scientific research units, medical schools, emergency control centers, and medical and health units.

Key Features:
• A wide range of speed from 0 to 1500rpm
• Used for various mixing applications with optional adapters
• Maintenance-free brushless DC motor

Specifications	B-M
Shaking movement	Orbital
Orbital diameter	4.5mm
Maximum weight(with accessory)	0.5kg
Motor typeBrushless	DC motor
Motor rating input	18W
Motor rating output	10W
Speed range	Single microplate: 0-1500rpm Double microplate: 0-1000rpm
Speed display	Scale
Voltage	100-240V,50/60Hz
Power	20W
Dimension	260×150×80mm
Weight	3kg
Permissible ambient temperature and humidity	5-40°C,80%RH
Protection class	IP21

Order Info

Cat. No.

P/N

Descriptions

Power supply

8031202000

NB-M

Microplate Mixer inlcude Microplate clamp, 18900042(package contain the box)

USA plug,100V-220V/50Hz/60Hz

Cn plug,100V-220V/50Hz/60Hz

Euro plug,100V-220V/50Hz/60Hz

UK plug,100V-220V/50Hz/60Hz

Accessories
Cat. No.	Model	Descriptions
18900067	PS1.1	Universal top plate(round),used with VT1.3.1--5
18900020	VT1.3.1	Tube adapter, for 48 holes test tubes, Ø6mm (0.5ml), used with VT 1.3/ VT 1.2/PS1.1
18900021	VT1.3.2	Tube adapter, for 18 holes test tubes, Ø10mm (1.5-2.0ml), used with VT 1.3/ VT 1.2/PS1.1
18900022	VT1.3.3	Tube adapter, for 12 holes test tubes, Ø12mm (2-7ml) , used with VT 1.3/ VT 1.2/PS1.1
18900023	VT1.3.4	Tube adapter, for 8 holes test tubes, Ø16mm (4-15ml), used with VT 1.3/ VT 1.2/PS1.1
18900024	VT1.3.5	Tube adapter, for 8 holes test tubes, Ø20mm (20ml), used with VT 1.3/ VT 1.2/PS1.1
18900042	PS1.2	Microplate clamp
18900079	NBM-116	Double microplate clamps
