Laboratory Shaker - Nanbei Instrument Limited

Place of Origin:	Zhengzhou
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	NB-D3309-Pro

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 SET PER MONTH

Detail Information

Tilt Angle:	9°	Motor Type:	DC Motor
Motor Input Power:	40W	Motor Output Power:	24W
Speed Range:	10-70rpm	Speed Display:	LCD
Timer Display:	LCD
High Light:	70rpm Laboratory Shaker , Tilt 9 Laboratory Shaker , 70rpm 3D Shaker

Product Description

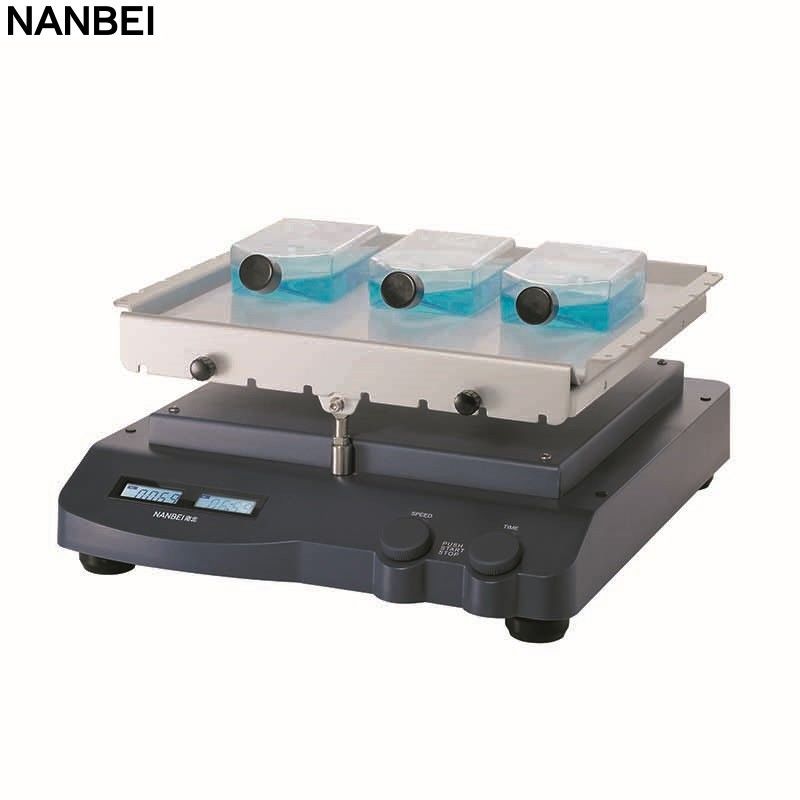

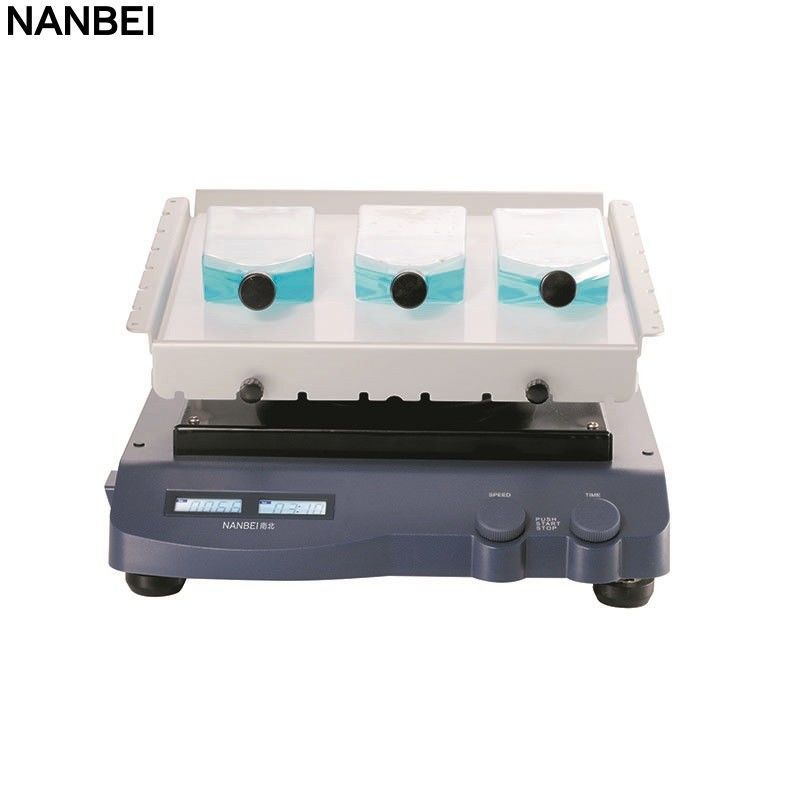

LCD Digital 3D Shaker NB-D3309-Pro

Key Specifications/Special Features:

Biological shaker is a common laboratory equipment, mainly used for bacterial culture, fermentation, hybridization and biochemical reaction, as well as enzyme, cell tissue culture research, in medicine, biology, molecular, pharmaceuticals, food, environment, etc. The industry is widely used.

10-70rpm Tilt 9° Laboratory Shaker LCD Digital 3D Shaker 0

Key Features:
• Three-dimensional rocking motion with an angle of 9°
• Max. load capacity is 5kg with platform
• Speed range of 10-70rpm
• Double LCDs for independent display of time and speed
• Various of platform accessories

Specifications	NB-D3309-Pro
Tilt angle	9°
Max. load capacity (with platform)	5kg
Motor type	DC motor
Motor input power	40W
Motor output power	24W
Speed range	10-70rpm
Speed display	LCD
Timer display	LCD
Time settings range	1min-19h59min
Voltage	100-240V, 50/60Hz
Power	50W
Weight	9kg
Permissible ambient temperature and humidity	5-40°C 80%RH
Dimension[W×D×H]	360×430×106mm
Protection class	IP21

Cat.No.

P/N

Descriptions

8032422100

NB-D3309-Pro

LCD Digital 3D Shaker (including of a platform 18900155), angle 9°(package contain in the box)

USA plug,100V-220V/50Hz/60Hz

Cn plug,100V-220V/50Hz/60Hz

Euro plug,100V-220V/50Hz/60Hz

UK plug,100V-220V/50Hz/60Hz

Cat. No.	P/N	Descriptions
18900027	330.1	Universal attachment with 4 bars
18900028	330.2	Fixing clip attachment
18900040	330.3	Lengthways roller attachment
18900155	330.5	Dish platform with non-slip mat and fixed string(8 pcs)
18900036		Bar for SK330.1 Universal attachment,black
18900029	330.2.1	Fixing clip for flask volume 25 ml
18900030	330.2.2	Fixing clip for flask volume 50 ml
18900031	330.2.3	Fixing clip for flask volume 100 ml
18900032	330.2.4	Fixing clip for flask volume 200/250 ml
18900033	330.2.5	Fixing clip for flask volume 500 ml
18900280		Connect sticks for double dishes shaker 1/pK
