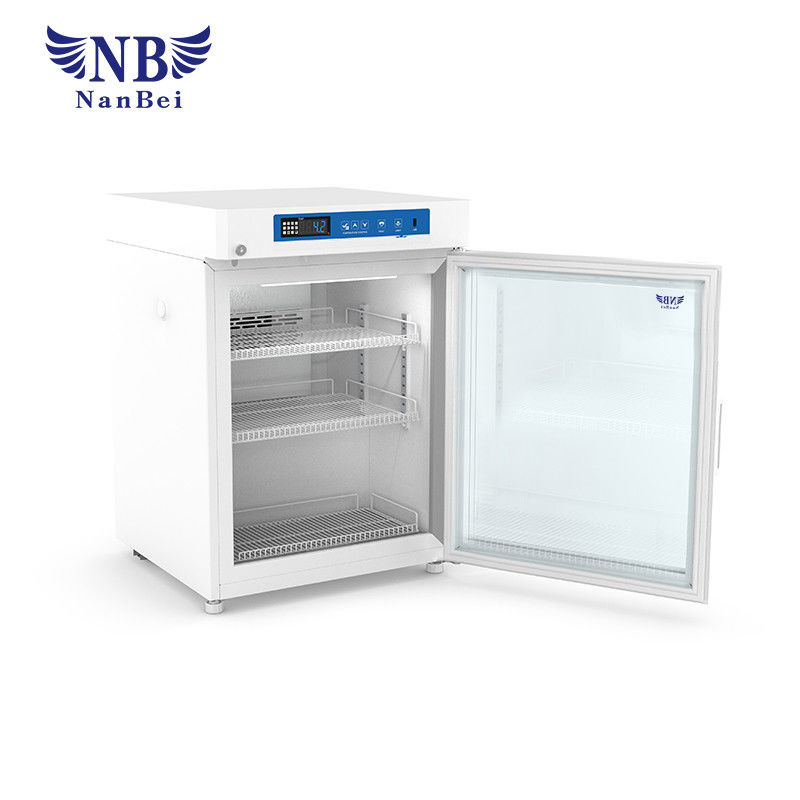

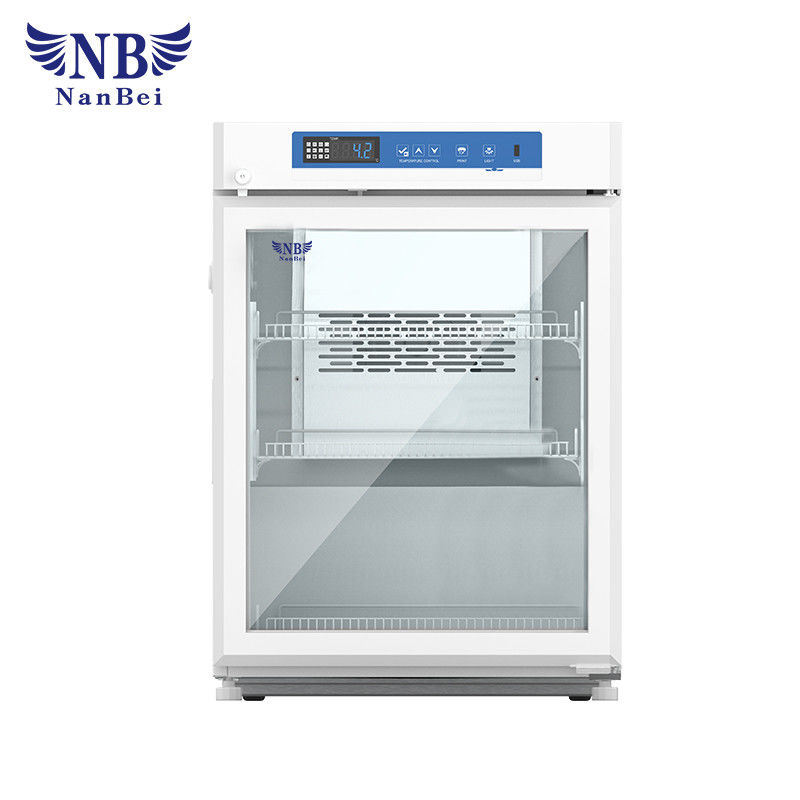

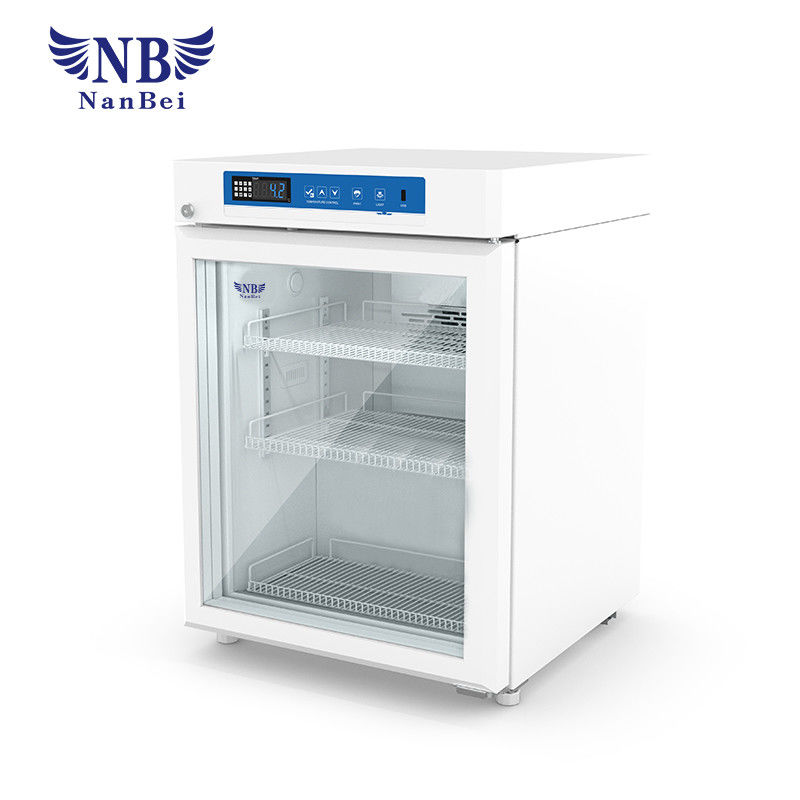

2~8℃ Lab Grade Freezer , Small Lab Freezer 75 Liters Volume YC-75 Model

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: YC-75
Minimum Order Quantity: 1set
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Model: YC-75 Type: Upright
Volume: 75 Liters Dimension: 540*560*764mm
Inner Size: 444*440*536mm Weight: 41kg / 44kg
Power: 147W , 220V/50HZ Ambient Temperature: 16-32 ° C
High Light:

medical grade refrigerator

,

pharmacy grade refrigerator


Product Description



2~8℃ Lab Grade Freezer , Small Lab Freezer 75 Liters Volume YC-75 Model





Usage & Application

Professional refrigeration equipment for cryogenic medicine in the medical industry, can also be used to store biological products, vaccines, drugs, reagents, etc.

Applicable to pharmacies, pharmaceutical factories, hospitals, disease prevention and control centers, community health service centers, and various laboratories.



Features: (Blue color is Advanced Feature )

1. Style: vertical, single door.

2. Box material: The box body is made of high quality PCM steel plate with soft surface color.

3. Liner material: The inner wall is designed with embossed aluminum plate, which is durable and easy to clean.

4. Door heating mode: automatic heating mode, constant heating mode, and off mode, achieving no condensation under the condition of 32 °C ring temperature 80% humidity.

5. Compressor: It adopts famous brand high-efficiency compressor and international brand fan motor, which is energy-saving, efficient and quiet. R600a refrigerant.

6. Efficient condenser and evaporator, refrigerated built-in fan, fast cooling, with automatic frost function.

7. The ribbon LED lighting system inside the box has low power consumption and high brightness, and the inside of the cabinet is clear at a glance.

8. Equipped with 2 high-density steel wire dip shelves (with a spacing of less than 1 cm to prevent items from falling), convenient for storing items and easy to clean.

9. The cabinet is equipped with a lock design to prevent random opening and store items safely.

10. The first two support feet + the rear two casters are designed to facilitate the movement of the box.

11. A test hole is provided on the left side to facilitate the temperature inside the test box.

12.1-inch high-brightness sky blue digital temperature screen, softer visual, display accuracy of 0.1 °C, adjustable humidity.

13. High-precision microcomputer temperature control system with three sensors for control/alarm temperature, tank temperature and ambient temperature to ensure safe and stable operation.

14. The temperature fluctuation range of the box is ±3 °C, and the temperature inside the box can be kept within the range of 2-8 °C by setting the temperature. The air duct type strong refrigeration gas circulation system ensures the temperature uniformity inside the cabinet.

15. Perfect alarm function: It has many functions such as high and low temperature alarm, door open alarm, power failure alarm, low battery alarm, sensor fault alarm and so on. The door beeps alarm and the door close alarm is eliminated.

16. Alarm mode: sound beep, alarm code 3 seconds / interval interval flashing, the item is safer to store, with remote alarm function.

17. Standard USB data export interface, access U disk can automatically store the current month and last month data, data PDF format. The U disk is continuously connected to automatically store temperature data continuously.

18. Standard RS485 interface, remote alarm interface.

19. When the control/alarm sensor fails, the compressor will operate with 5 minutes of power on and 6 minutes of stoppage to ensure the storage of items safely.

20. Condensed water is automatically evaporated after collection, eliminating the need to manually handle condensate.

21. The door open fan motor stops running and the door close fan motor starts to run automatically.



2~8℃ Lab Grade Freezer , Small Lab Freezer 75 Liters Volume YC-75 Model 0





Model YC-75
Type Upright
Volume 75 liters
Dimension 540*560*764mm
Inner size 444*440*536mm
Weight 41kg / 44kg
Power 147W , 220V/50HZ
Ambient temperature 16-32 ° C
Ambient humidity 20-80%



Company Introduction

2~8℃ Lab Grade Freezer , Small Lab Freezer 75 Liters Volume YC-75 Model 1

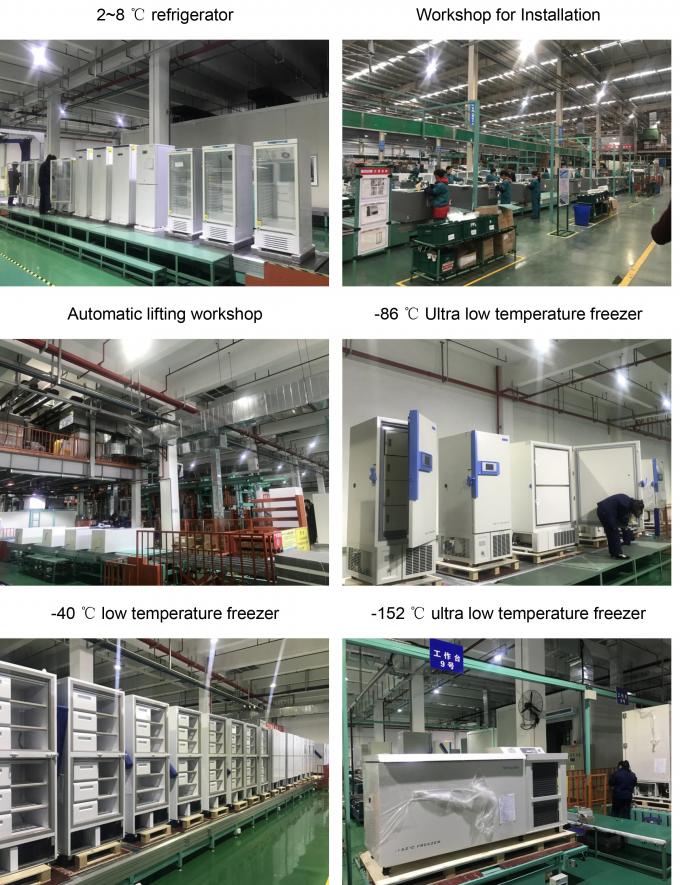

Factory Show

2~8℃ Lab Grade Freezer , Small Lab Freezer 75 Liters Volume YC-75 Model 2
Certificate

2~8℃ Lab Grade Freezer , Small Lab Freezer 75 Liters Volume YC-75 Model 3

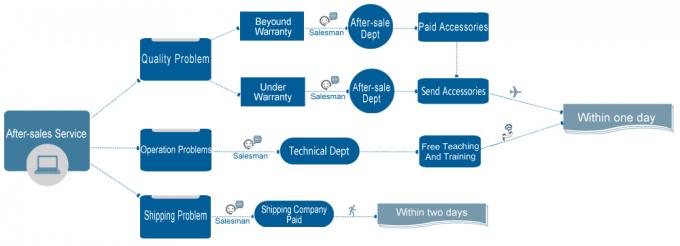

Our Services
