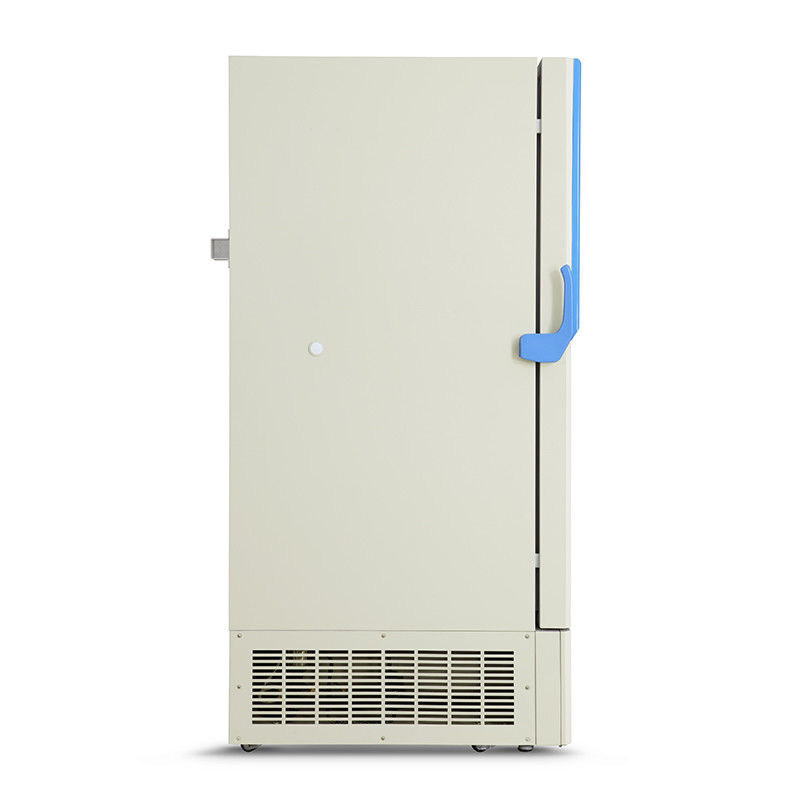

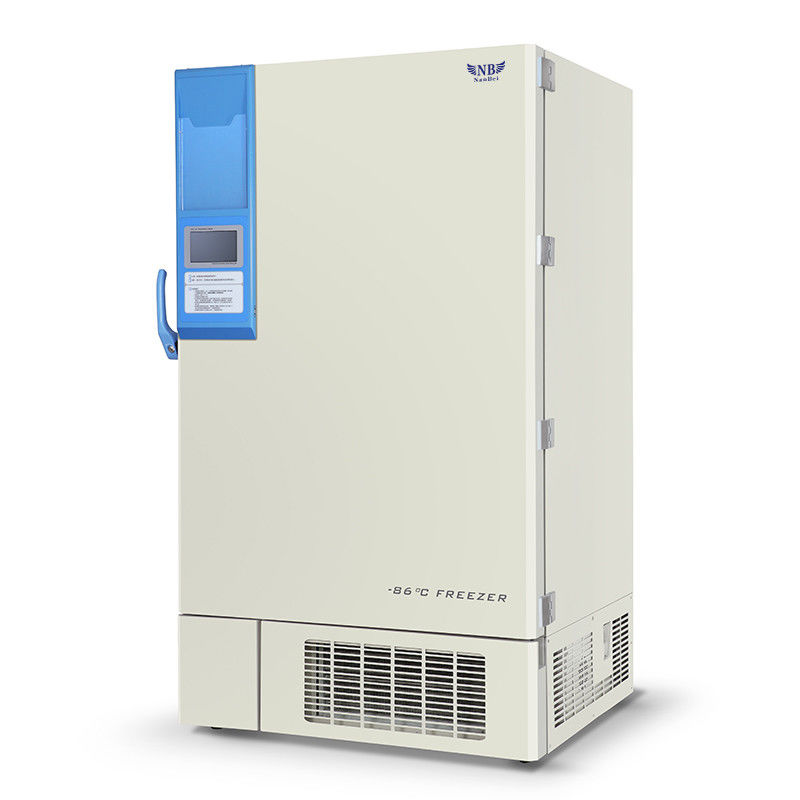

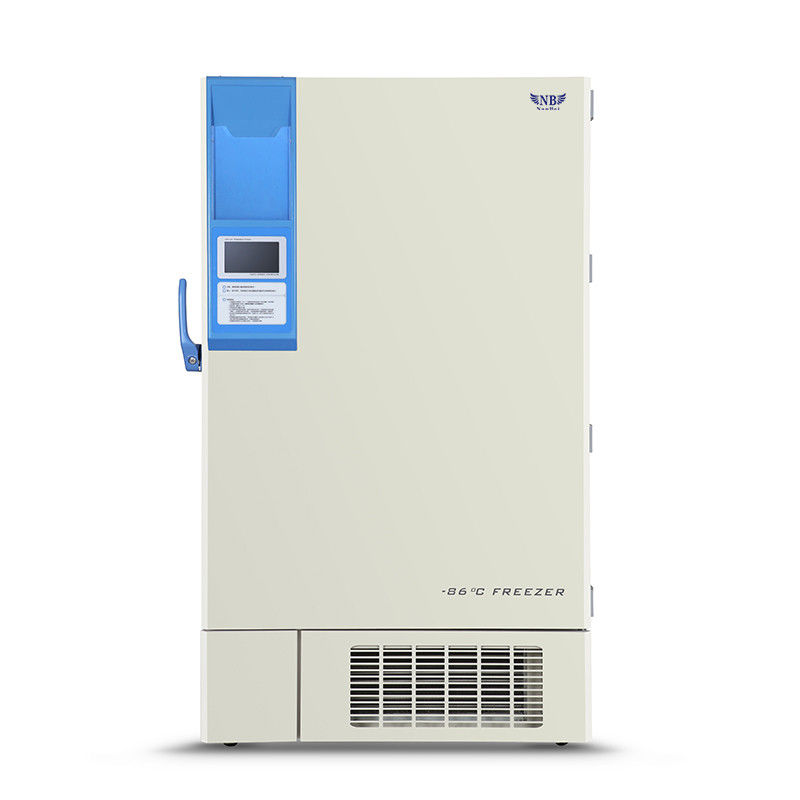

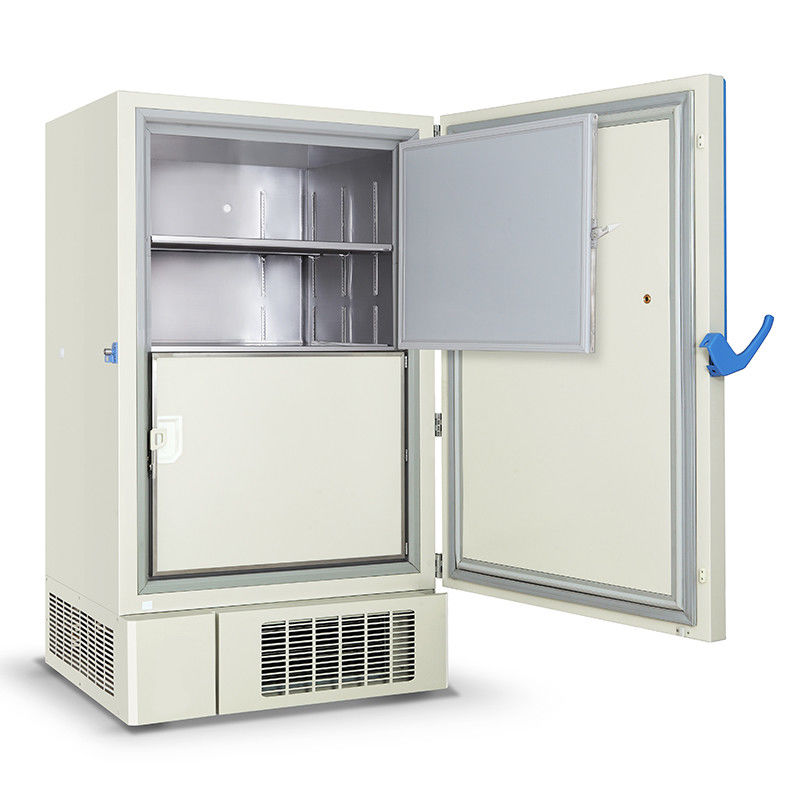

-86 Pharmacy Medical Refrigerator , Ultra Low Temeprature Freezer

Mainly used for preserving low temperature tests of viruses, germs, red blood cells, white blood cells, skin, bones, semen, biological products, ocean products, electronic devices, special materials, etc.

Application

Applicable to blood stations, hospitals, epidemic prevention stations, research institutes, electronic chemical and other enterprise laboratories, biomedical engineering research institutes, ocean fishing companies, etc.

Feature & onfiguration

1. Working conditions: ambient temperature 10 ~ 32 ° C, working environment humidity: 20-80%, power supply 220V ± 10%, 50 Hz ± 1HZ.

2. Display: 7-inch LCD liquid crystal touch screen, clear display, friendly interface, dynamic display of real-time display of operating temperature, set temperature, voltage, ambient temperature, alarm status, time and other parameters. The static temperature curve shows that the temperature operation status can be visually understood at any time.

3. Temperature control: High-precision microcomputer temperature control system, the temperature inside the box is arbitrarily set within the range of -10 °C to -86 °C and can be stably operated.

4. Box material: high-quality structural steel plate, advanced anti-corrosion phosphating and spraying process.

5. Liner material: SUS304 stainless steel plate, anti-corrosion, long service life, easy to clean.

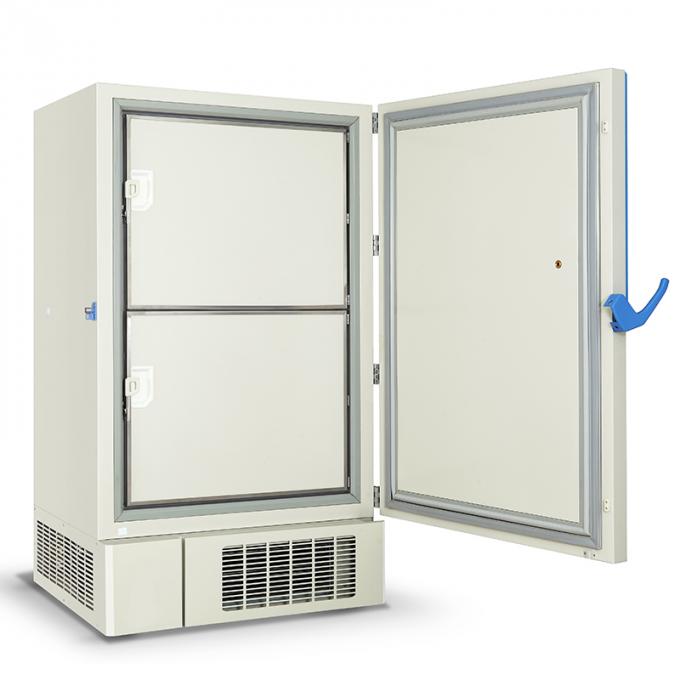

6. Insulation material: High-performance VIP vacuum insulation material is used to greatly improve the insulation effect. Double-layer foam insulation door, both inner and outer doors are provided with door seals, and the patented external door insulation design effectively prevents the loss of cooling capacity: the foamed inner door has better sealing performance and the temperature of the accessed items rises less.

7. The fluorine-free environmentally friendly refrigerant, invented by the Institute of Physics and Chemistry of the Chinese Academy of Sciences, has a unique refrigeration circuit with independent intellectual property rights, which has a faster cooling rate and a more uniform temperature. The single-stage oil-slip compressor refrigeration technology has a stronger refrigeration capacity.

8. Secure storage: perfect sound and light alarm system (high and low temperature, door opening, voltage abnormality, sensor failure, condenser heat dissipation, system failure, etc.), and the storage of items is safer;

9. Boot delay and stop interval protection function to ensure reliable operation; keyboard lock and password protection function to prevent arbitrary adjustment of operating parameters; double lock structure design, with hidden lock, and padlock can be used to ensure the safety of user storage items, both safe Reliable.

10. Imported SECOP high-efficiency compressor, powerful power, more reliable quality, imported EBM low noise fan, energy efficient. Condensing fan and compressor cooling fan can be intelligently started and stopped according to the change of ambient temperature and the operating state of the compressor.

11. Large-area finned condenser, fin spacing ≤ 2mm, large heat dissipation area, good effect.

12. Automatically heating the door body balance hole design, completely solve the problem of opening the door several times in a short time without waiting.

13. 3 temperature test holes for easy test temperature.

14. Standard USB module can synchronously record the actual temperature, set temperature, high and low temperature alarm temperature, input voltage, ambient temperature and other data in the box for more than 10 years.

15. Optional remote communication centralized monitoring system, liquid nitrogen / carbon dioxide backup system.

16. Optional temperature recording printer, power failure alarm, warning light, voltage compensation system.

17. At a temperature of 17.25 ° C, the cooling rate is ≤ 7 hours.

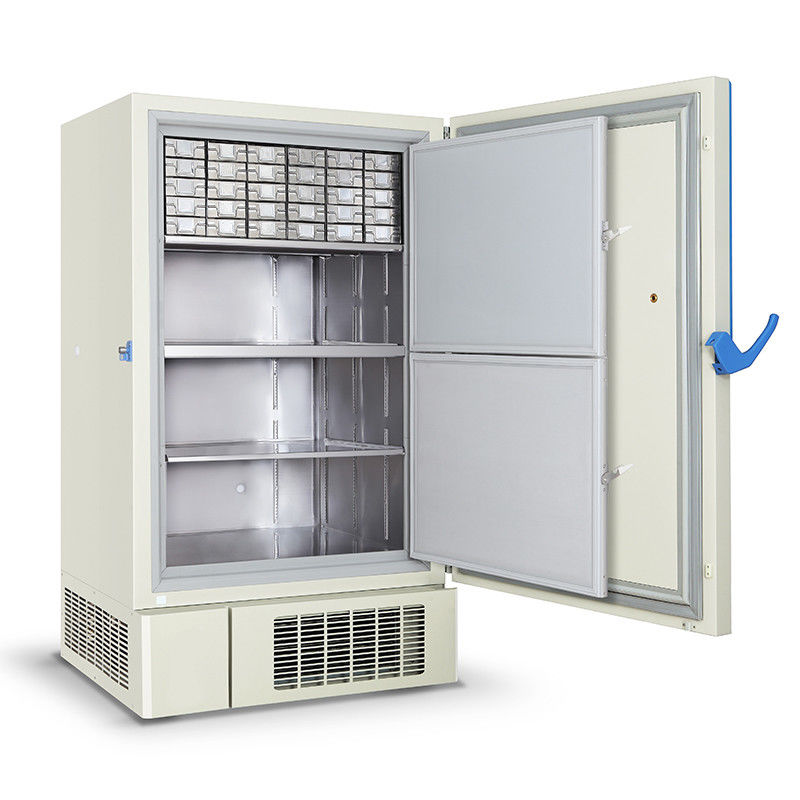

18. It can store 660 standard 2 inch frozen storage boxes and 66,000 standard frozen storage tubes.

19. Obtained national CQC energy certification and environmental certification.

Company Introduction

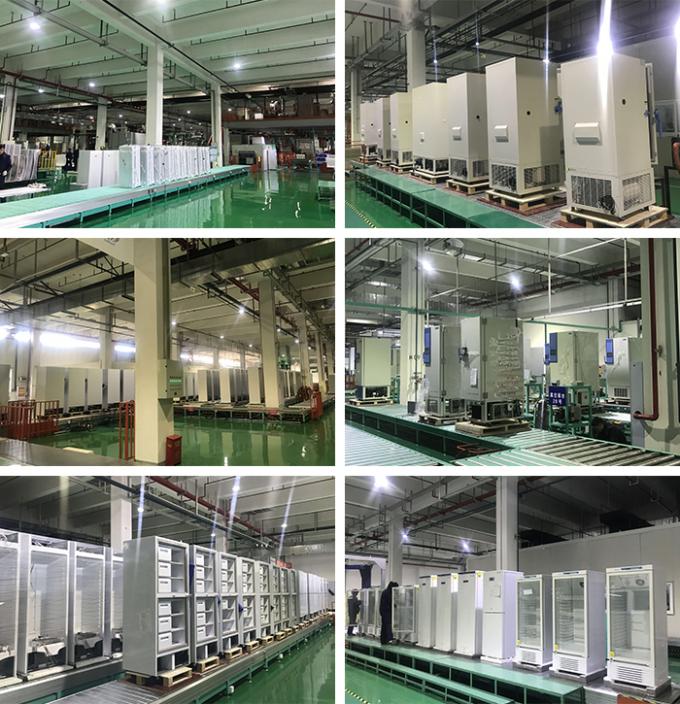

Factory Show

Certificate

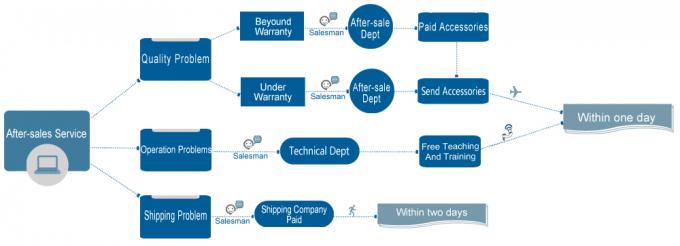

Our Services
