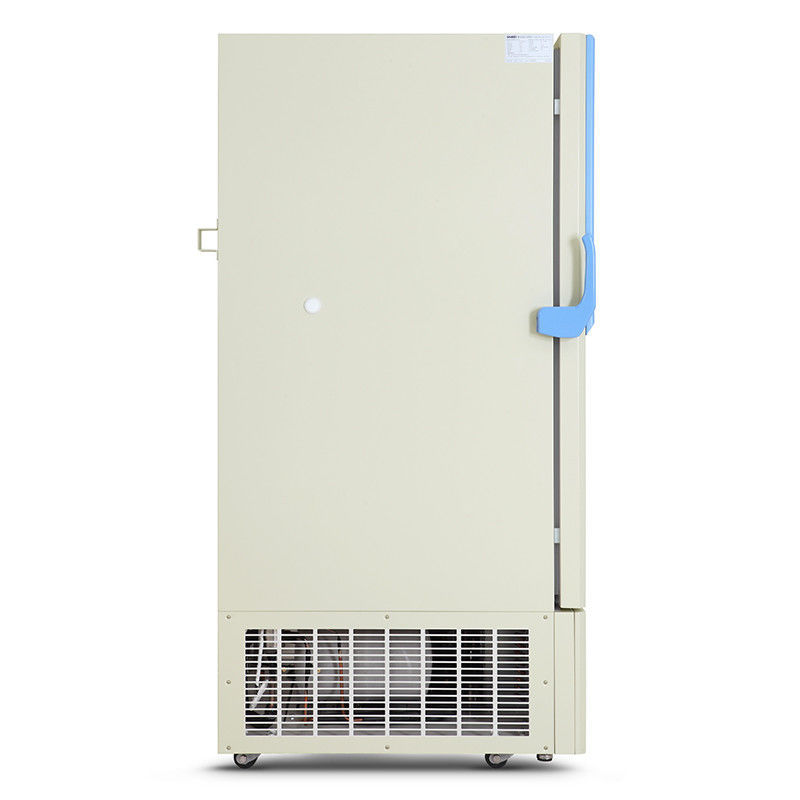

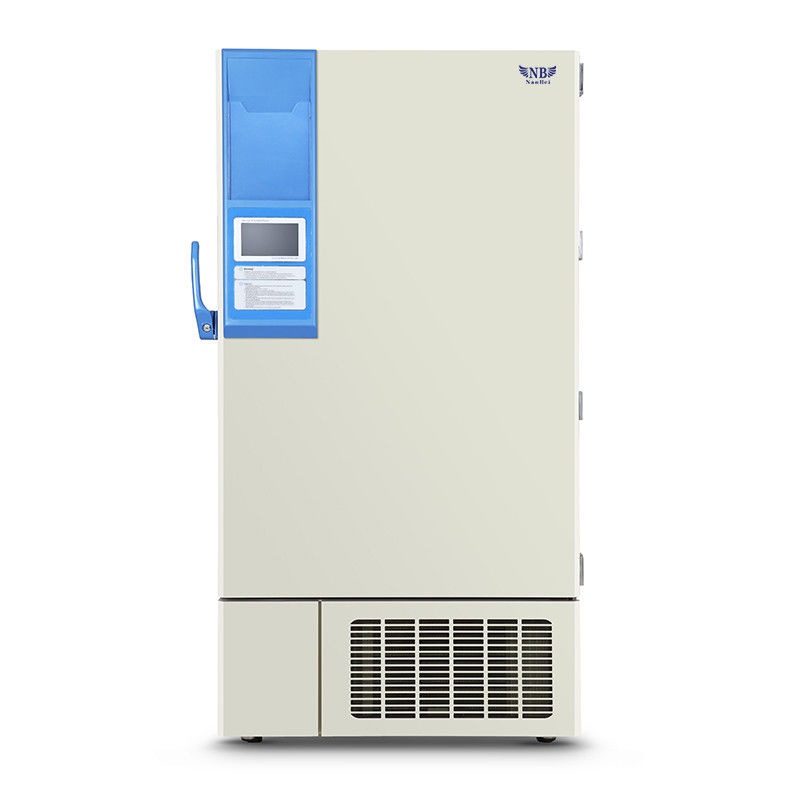

-86℃ Upright Ultra Low Temperature Freezer , Laboratory 678L -86 Degree Ultra Low Freezer

Usage & Application

Preservation of viruses, bacteria, red blood cells, white blood cells, skin, bones, biological products, ocean products, electronic devices, low-temperature tests of special materials, etc., suitable for blood stations, hospitals, disease control centers, research institutes, electronic chemical and other enterprise laboratories , Biomedical Engineering Research Institute, Oceanic Fisheries Company, etc.

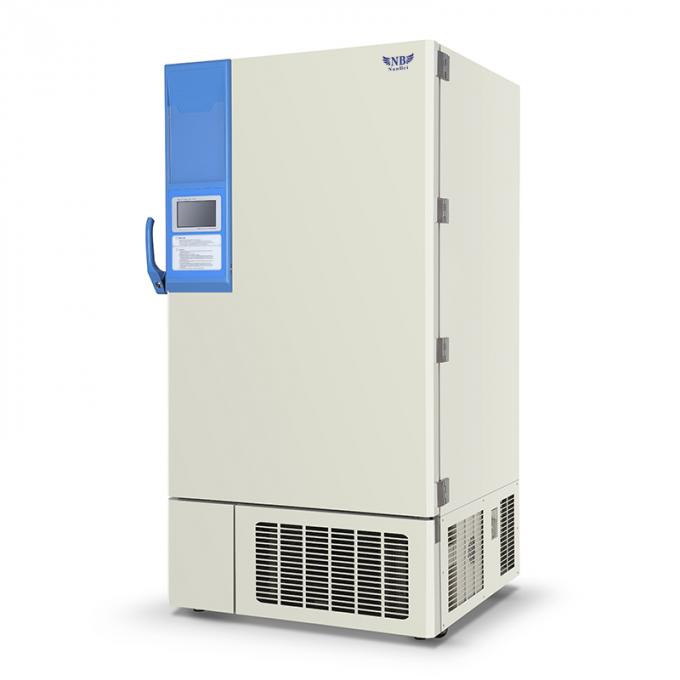

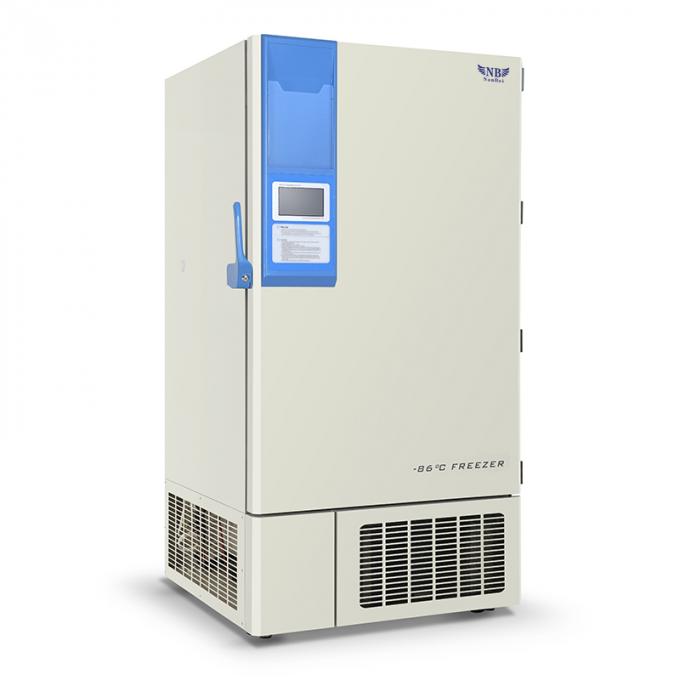

Description of -86℃ Upright Ultra Low Temperature Freezer

*1. Display: 7-inch LCD liquid crystal touch screen, clear display, friendly interface, dynamic display of real-time display of operating temperature, set temperature, voltage, ambient temperature, alarm status, time and other parameters. The static temperature curve shows that the temperature operation status can be visually understood at any time.

*2. Temperature control: High-precision microcomputer temperature control system, arbitrarily set within the range of -10 °C to -86 °C.

3. Box material: high-quality structural steel plate, advanced anti-corrosion phosphating and spraying process.

*4. Liner material: SUS304 stainless steel plate, anti-corrosion, long service life, easy to clean.

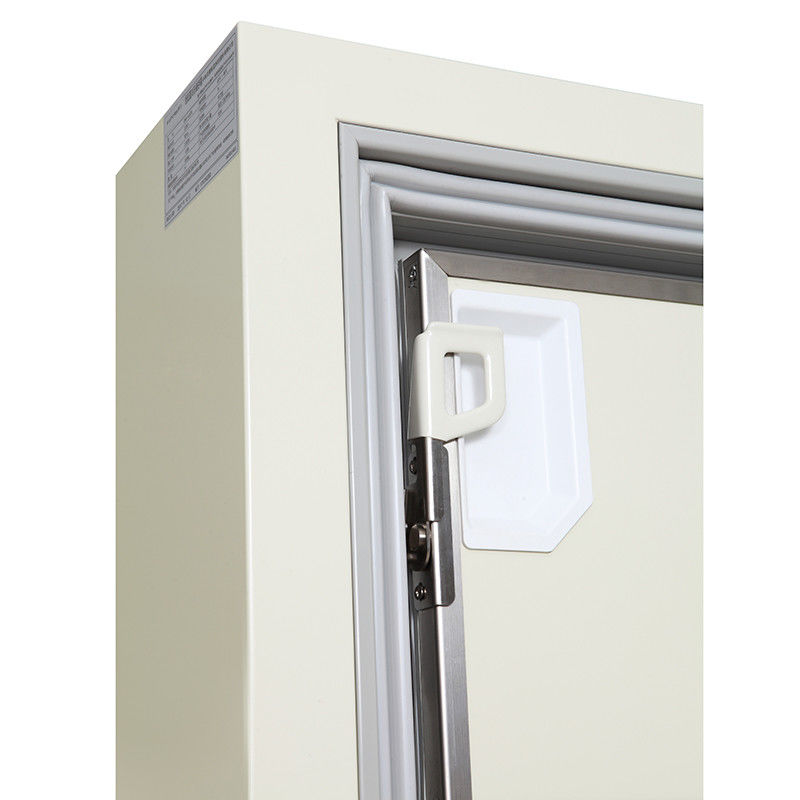

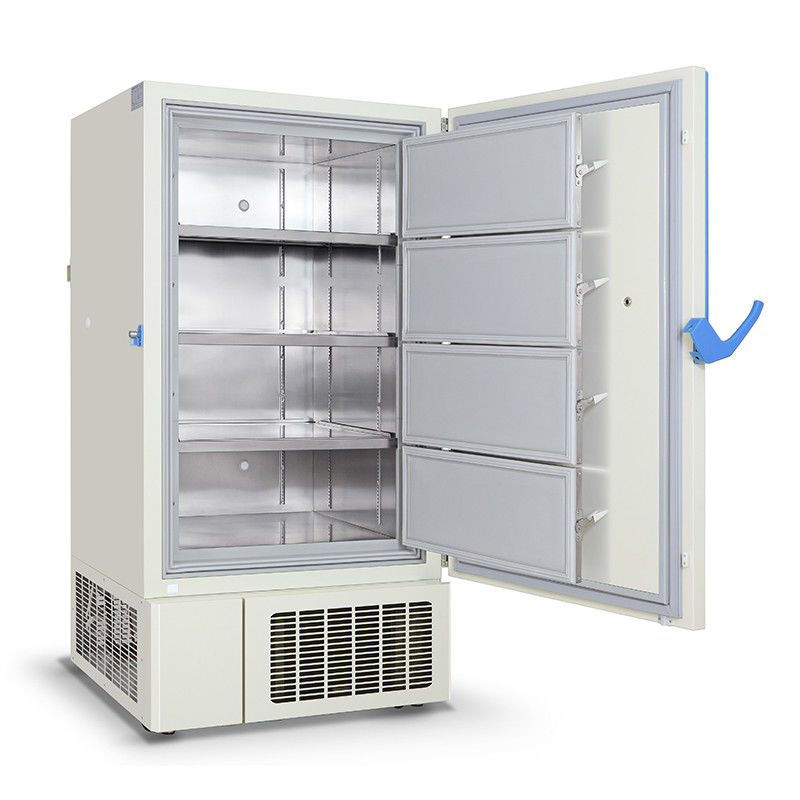

*5. Insulation material: High-performance VIP vacuum insulation material is used to greatly improve the insulation effect. Double-layer foam insulation door, both inner and outer doors are provided with door seals, and the patented external door insulation design effectively prevents the loss of cooling capacity: the foamed inner door has better sealing performance and the temperature of the accessed items rises less.

*6. The fluorine-free environmentally friendly refrigerant, invented by the Institute of Physics and Chemistry of the Chinese Academy of Sciences, has a unique refrigeration circuit with independent intellectual property rights, which has a faster cooling rate and a more uniform temperature. The single-stage oil-slip compressor refrigeration technology has a stronger refrigeration capacity.

*7. Secure storage: perfect sound and light alarm system (high and low temperature, open door, voltage abnormality, sensor failure, condenser heat dissipation, system failure, etc.), and the item storage is safer;

8. Power-on delay and stop interval protection function to ensure reliable operation; screen lock and password protection function to prevent arbitrary adjustment of operating parameters; double lock structure design, with hidden lock, and padlock can be used to ensure the safety of user storage items, safe Reliable.

*9. Imported SECOP high-efficiency compressor, powerful power, more reliable quality, imported EBM low noise fan, energy efficient. The condensing fan and the compressor cooling fan can be intelligently started and stopped according to the operating state of the compressor.

*10. Large-area finned condenser, fin spacing ≤ 2mm, large heat dissipation area, good effect.

*11. Automatically heating the door body balance hole design, completely solve the problem of opening the door several times in a short time without waiting.

*12. 3 temperature test holes for easy test temperature.

*13. Standard USB module can synchronously record the actual temperature, set temperature, high and low temperature alarm temperature, input voltage, ambient temperature and other data in the box for more than 10 years.

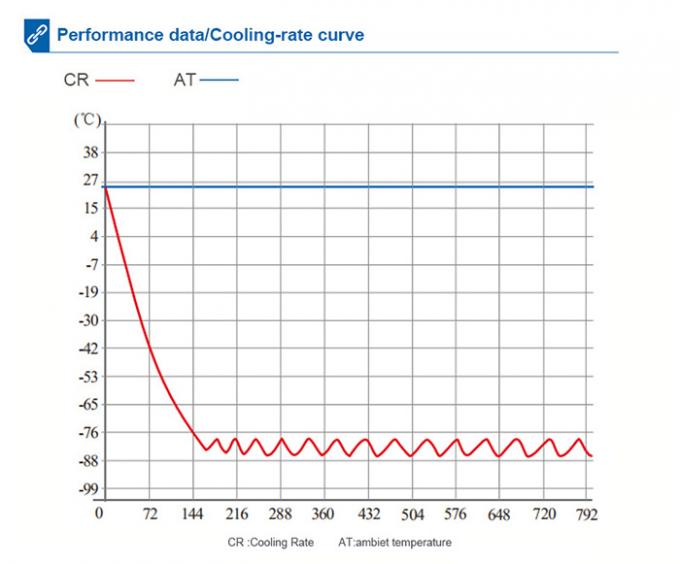

*14. At a temperature of 14.25 ° C, the cooling rate is ≤ 6 hours.

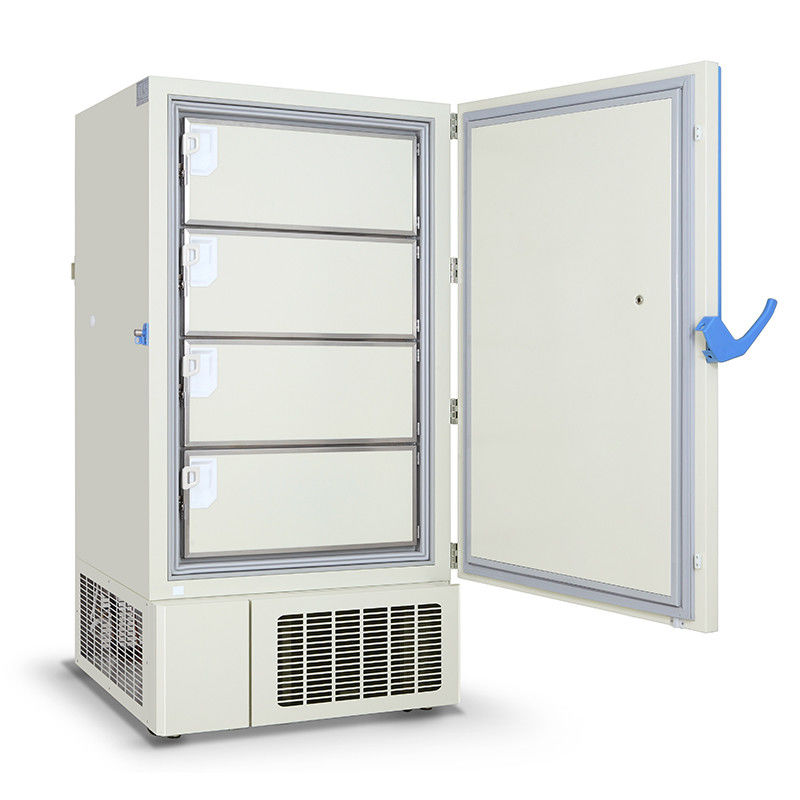

*15. It can store 500 2 inch standard frozen storage boxes and 50,000 standard frozen storage tubes.

*16. Obtained national CQC energy certification and environmental certification.

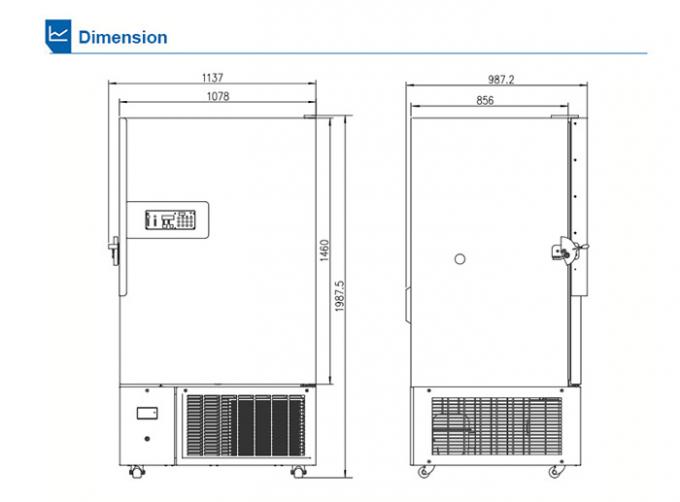

Technical data

Company Introduction

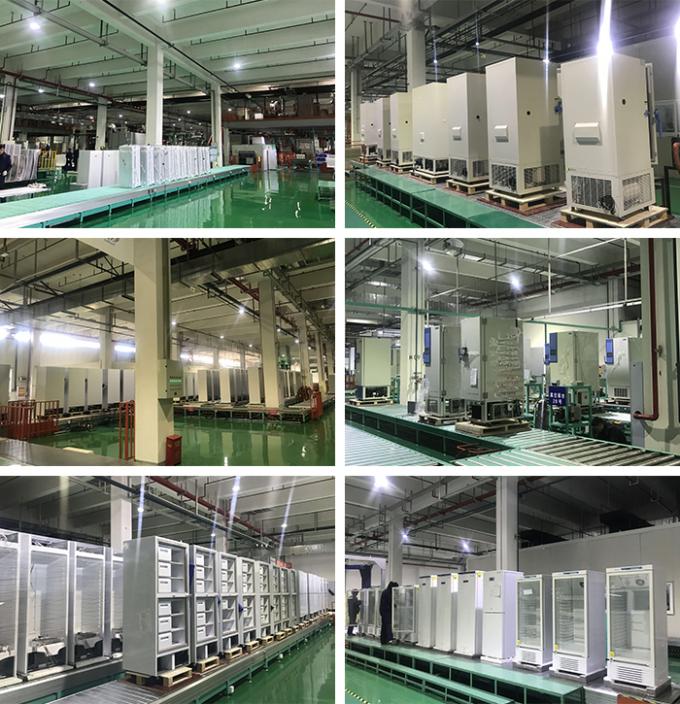

Factory Show

Certificate

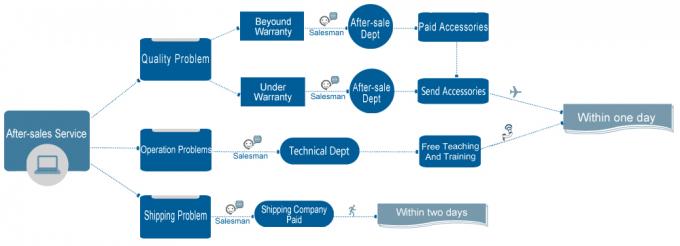

Our Services
