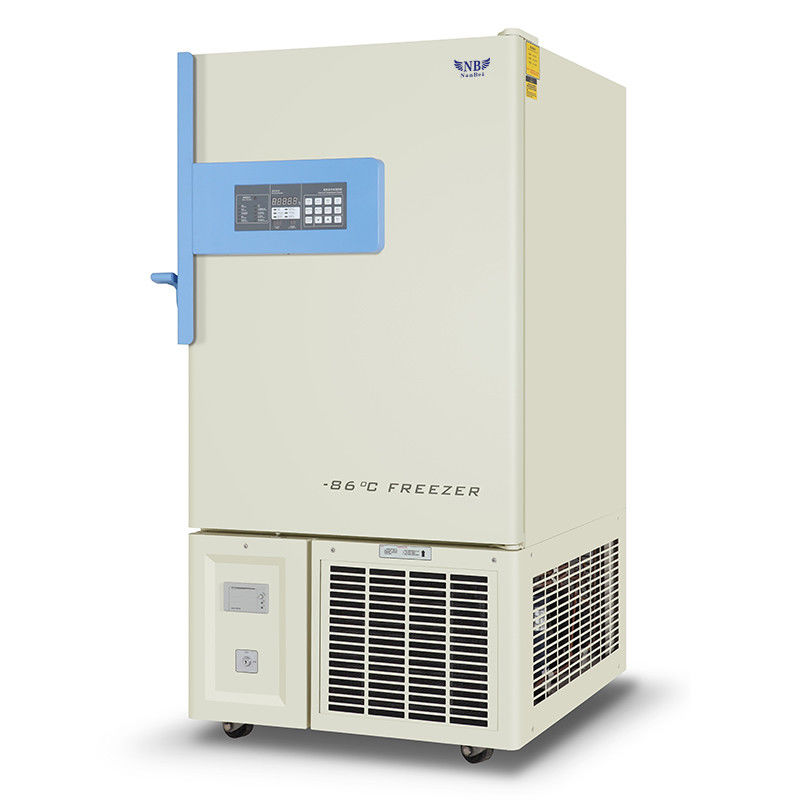

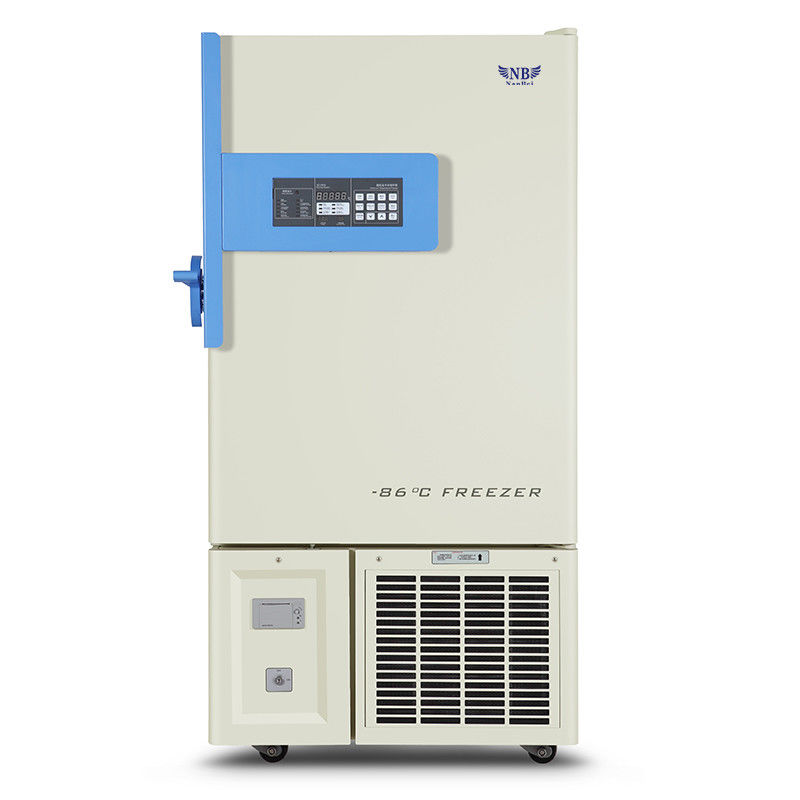

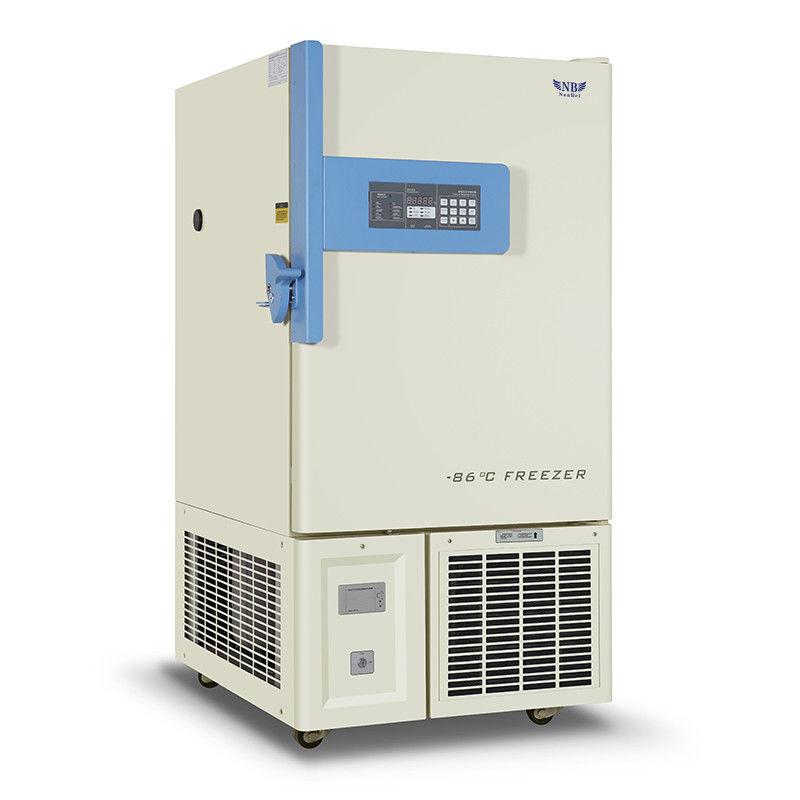

-86℃ Upright Ultra Low Temperature Freezer 218 liters with RoHS/CE

-86℃ Upright Ultra Low Temperature Freezer

Usage of -86℃ Upright Ultra Low Temperature Freezer

Storage of biological products, viruses, germs, red blood cells, white blood cells, skin, bones, electronic devices, special materials, etc.

Application of -86℃ Upright Ultra Low Temperature Freezer

Applicable to hospitals, blood stations, epidemic prevention stations, research institutes, electronic chemical and other enterprise laboratories, biomedical engineering research institutes, etc.

Description of -86℃ Upright Ultra Low Temperature Freezer

1. Working conditions: ambient temperature 10 ~ 32 ° C, working environment humidity: 20-80%, power supply 220V ± 10%, 50 Hz ± 1HZ.

2. Style: Upright.

3. Temperature range

4. Display: LED digital temperature display, real-time display of the temperature inside the box and various setting parameters (temperature, voltage, ambient temperature, compressor operating status, etc.), the operating status is clear at a glance.

5. Temperature control: High-precision microcomputer temperature control system, the temperature inside the box is arbitrarily set within the range of -10 °C to -86 °C and can be stably operated.

6. Box material: high-quality structural steel plate, advanced anti-corrosion phosphating, spraying process.

7. Liner material: It adopts all stainless steel inner liner, anti-corrosion, long service life and convenient cleaning.

8. Insulation material: thick insulation layer and VIP insulation board, multi-channel door seal design, good insulation effect.

9. The fluorine-free environmentally-friendly refrigerant, invented by the Institute of Physics and Chemistry of the Chinese Academy of Sciences, has a unique refrigeration circuit with independent intellectual property rights, which has a faster cooling rate and a more uniform temperature. The single-stage oil-slip compressor refrigeration technology has a stronger refrigeration capacity.

10. Secure storage: perfect sound and light alarm system (high and low temperature, open door, abnormal voltage, power failure 11. sensor failure, condenser heat dissipation, system failure, etc.), and the storage of items is safer;

12. Boot delay and stop interval protection function to ensure reliable operation; keyboard lock and password protection function to prevent arbitrary adjustment of operating parameters;

13. Imported high-efficiency compressor, strong power, more reliable quality, imported EBM low noise fan, energy efficient. Condensing fan and compressor cooling fan can be intelligently started and stopped according to the change of ambient temperature and the operating state of the compressor.

14. Test hole design to facilitate testing the temperature inside the box.

15. Standard temperature recording printer, you can read the temperature data at any time.

16. Optional remote communication centralized monitoring system, liquid nitrogen / carbon dioxide backup system.

17. Obtained national CQC energy certification and environmental certification.

Technical data

Company Introduction

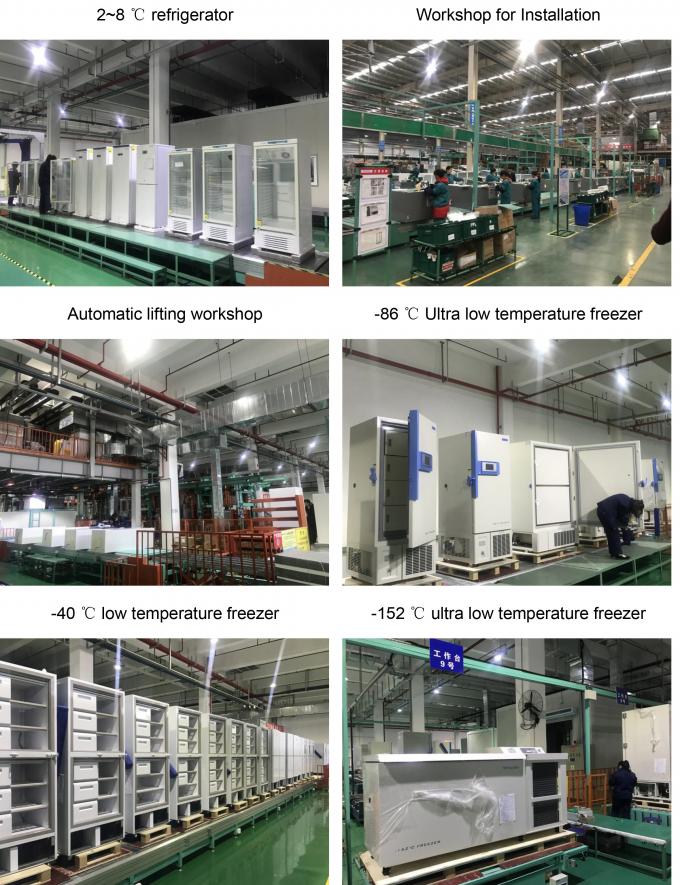

Factory Show

Certificate

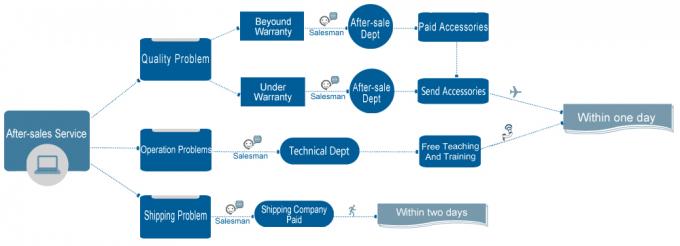

Our Services
