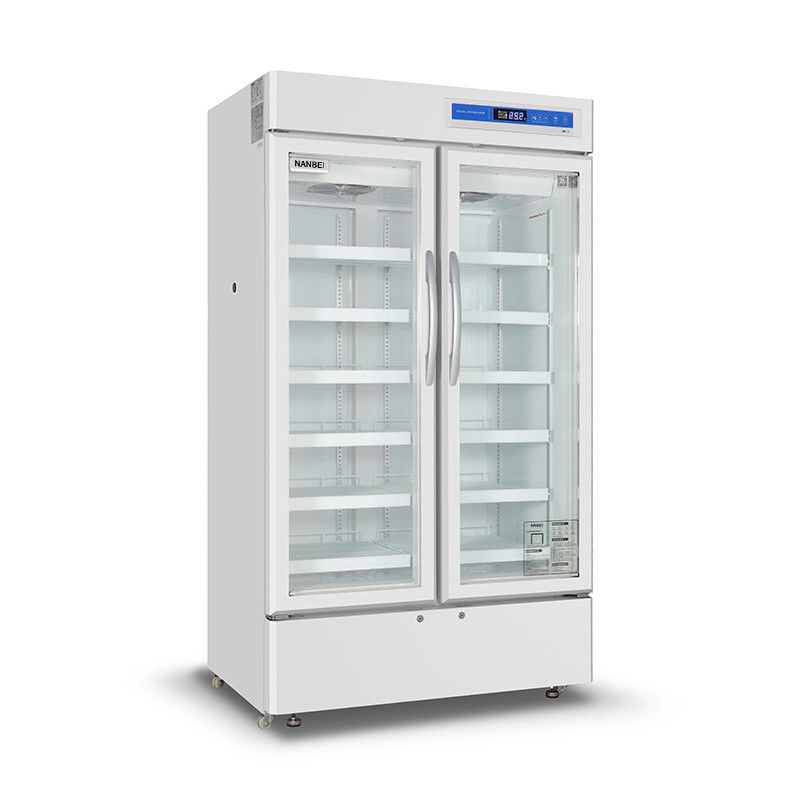

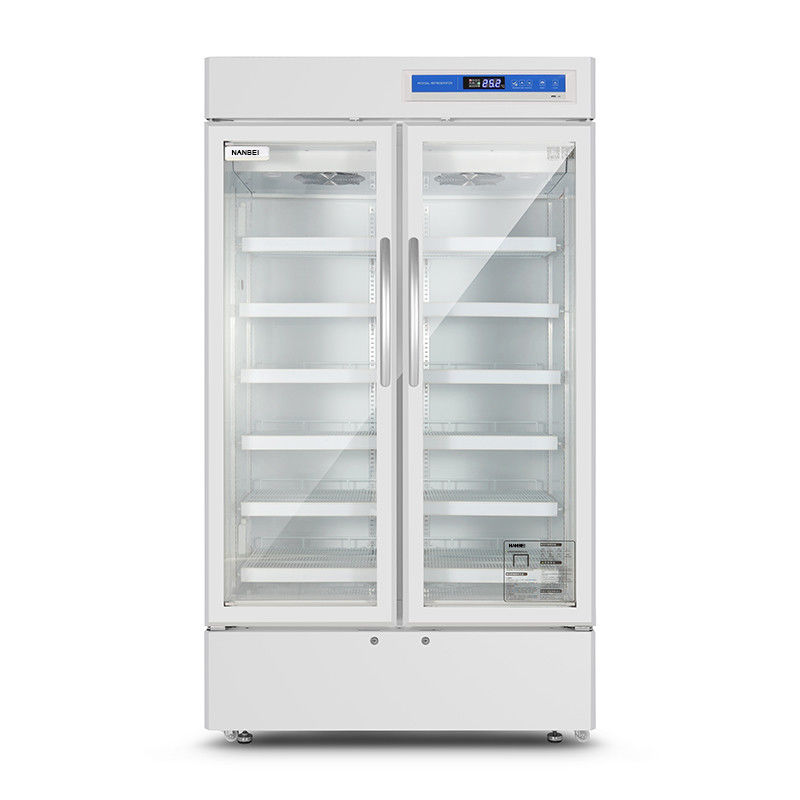

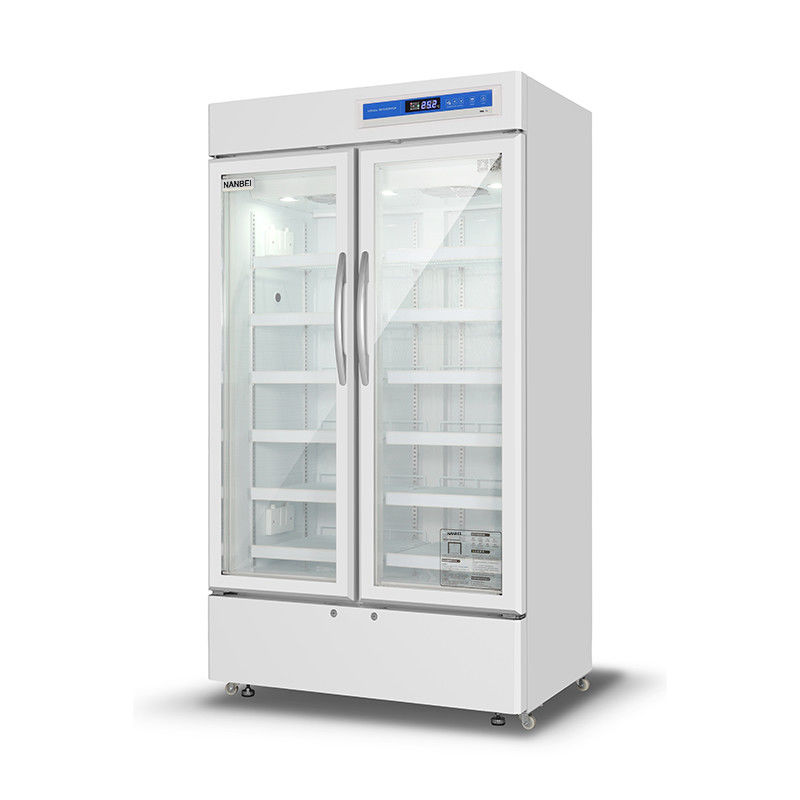

2-8C 725 liters Medical Laboratory Freezer Ultra Low Temperature Medical Refrigerator

YC-725 Medical Refrigerator

Usage and Application of Medical Refrigerator

Professional refrigeration equipment for cryogenic medicine in the medical industry, also used for storage of biological products, vaccines, medicines, reagents, etc.

Applicable to pharmacies, pharmaceutical factories, hospitals, CDC, community health service centers, and various laboratories.

Description of Medical Refrigerator

1. Box material: cold rolled steel plate, spray paint.

2. Liner material: spray aluminum plate.

3. Insulation material: no CFC polyurethane foaming.

4. The top LED lighting system inside the box has low power consumption and high brightness, and the inside of the cabinet is clear at a glance.

5. Compressor: It adopts brand-name high-efficiency compressor and brand fan motor, which is energy-saving, efficient and quiet.

6. The door body has a lock design to prevent random opening and store items safely.

7. Front and rear 4 universal casters + front 2 adjustment feet design, easy to move and fix.

8. High-brightness sky blue digital temperature screen, softer visual, display accuracy 0.1 °C, adjustable humidity.

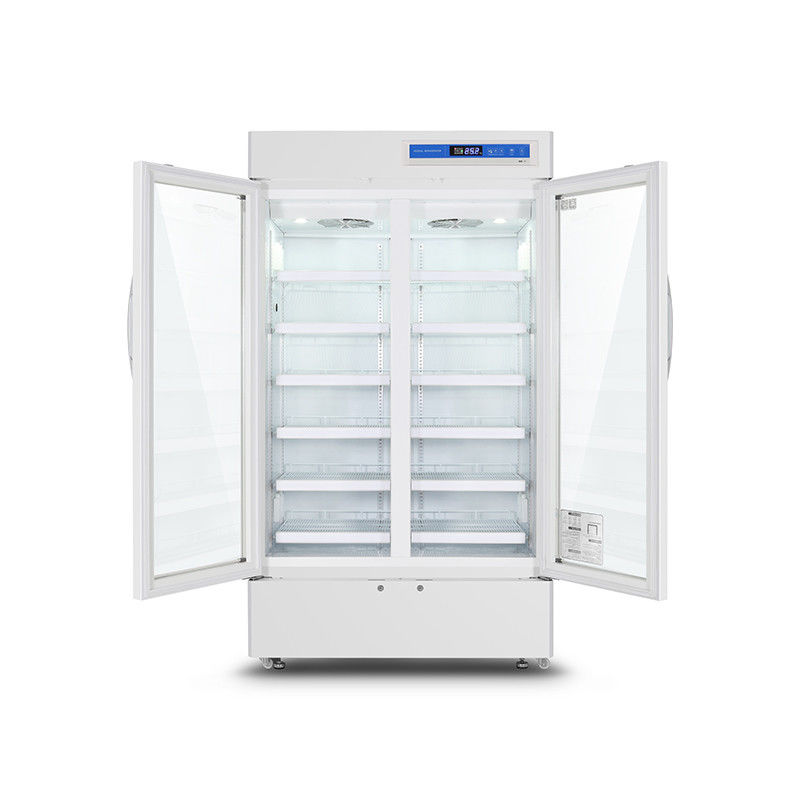

9. 12 high-density steel wire dip shelves with label cards for easy storage of items and easy to clean.

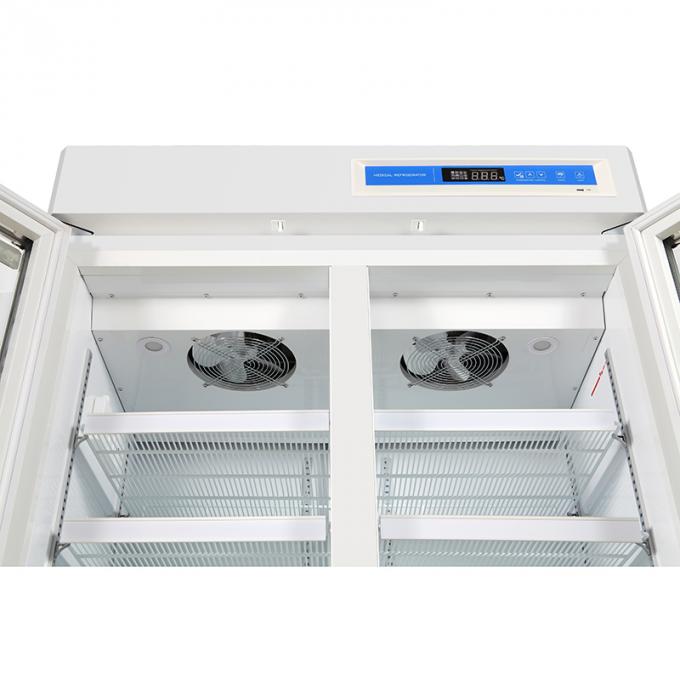

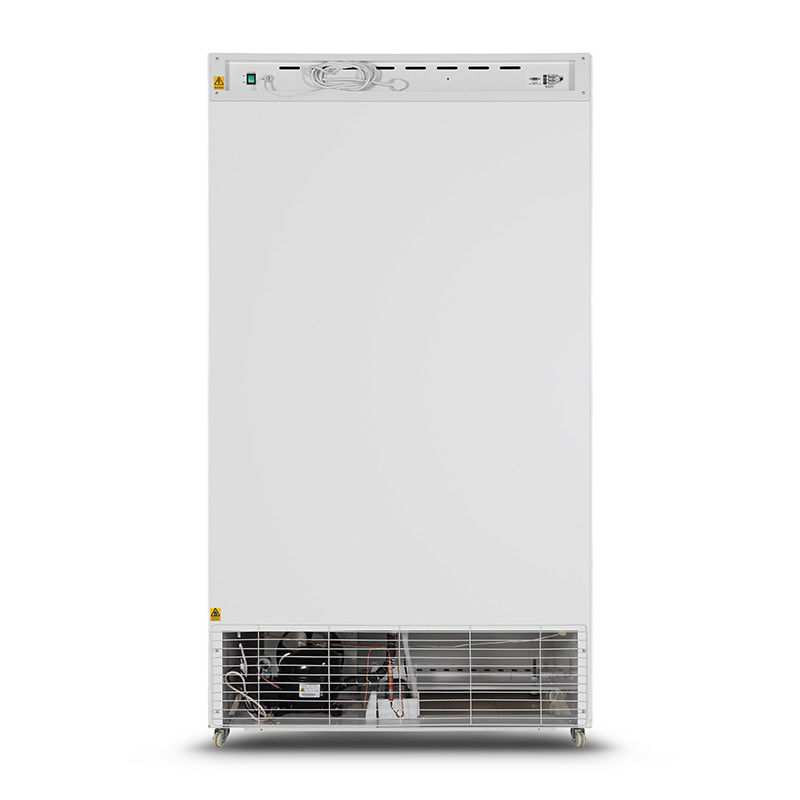

10. Air-cooled high-efficiency condenser, finned evaporator, refrigerated built-in suction fan, rapid cooling; with natural defrosting function, the temperature inside the box remains within 2-8 °C during defrosting.

11. High-precision microcomputer temperature control system, built-in 7-channel sensors such as upper temperature, lower temperature, control/alarm temperature, ambient temperature, evaporator temperature, condenser temperature, humidity sensor, etc., to ensure safe and stable operation, temperature sensor placed In the air inside the box, the temperature changes in real time.

12. Air duct type strong refrigeration gas circulation system to ensure the temperature uniformity inside the cabinet. The temperature fluctuation range of the box is ±3 °C, and the temperature inside the box can be kept within the range of 2-8 °C by setting the temperature.

*13. Perfect sound and light alarm function: sound buzzer, alarm code flashes for 3 seconds/time interval, with remote alarm function. It has many functions such as high temperature, low temperature, sensor alarm, door opening, power failure alarm, etc., and the items are safer to store.

*14. After the power failure alarm, the battery can provide no less than 48 hours display and alarm function, and supply power to the temperature recording printer and USB port.

*15. Optional: Temperature recording printer, printing interval is 1 to 240 minutes. The time in the system is synchronized with Beijing time. The data for the day and week can be printed, and the defined time period data can also be printed.

*16. Standard USB data export interface, access U disk can automatically store the current month and last month data, data PDF format. The U disk is continuously connected to automatically store temperature data continuously.

*17. Standard 485 interface, remote alarm interface.

*18. Door heating mode: automatic heating mode, constant heating mode, off mode, achieve 32 °C ring temperature 80% humidity without condensation, open the door full angle automatic closing function.

*19. When the control/alarm sensor fails, the compressor will operate with 5 minutes of power on and 6 minutes of stoppage to ensure the storage of items safely.

*20. Condensed water is automatically evaporated after collection, eliminating the need to manually handle condensate.

21. The door open fan motor stops running and the door close fan motor starts to run automatically.

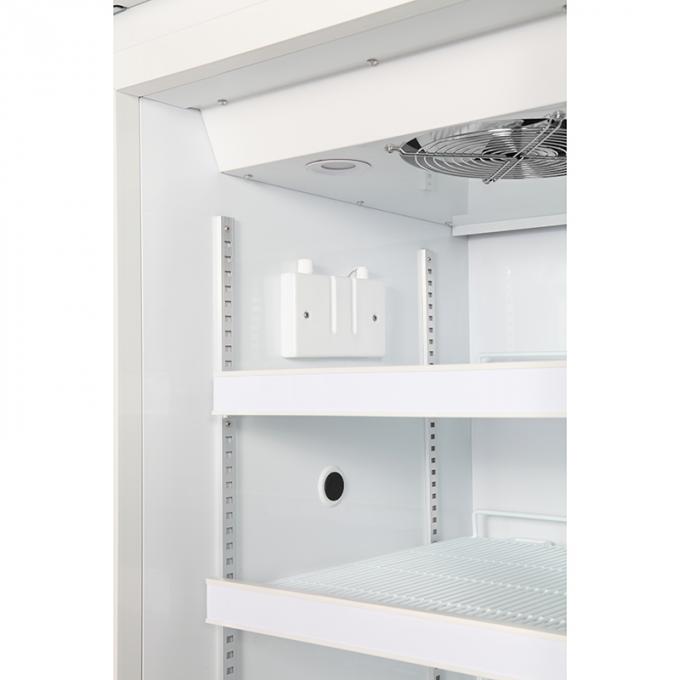

*22. One test hole is provided on the left side to facilitate the temperature inside the test box.

Technical data of Medical Refrigerator
