Paint Mixing Machine - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	NBZX2.2

Minimum Order Quantity:	1set
Price:	USD1387-USD2452/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Power(kw):	2.2	Speed（rpm）:	80~1250
Dispersion Disk Diameter(mm):	150~200	Lifting Range(mm):	1000
Mounting Height (mm):	3100	Dimension LxWxH(mm):	1500x550x2100
Weight (kg):	600	Condition:	New
Warranty:	1 Year	After-sales Service Provided:	Free Spare Parts
Certification:	CE,ISO
High Light:	lab mixing equipment , paint mixing equipment

Product Description

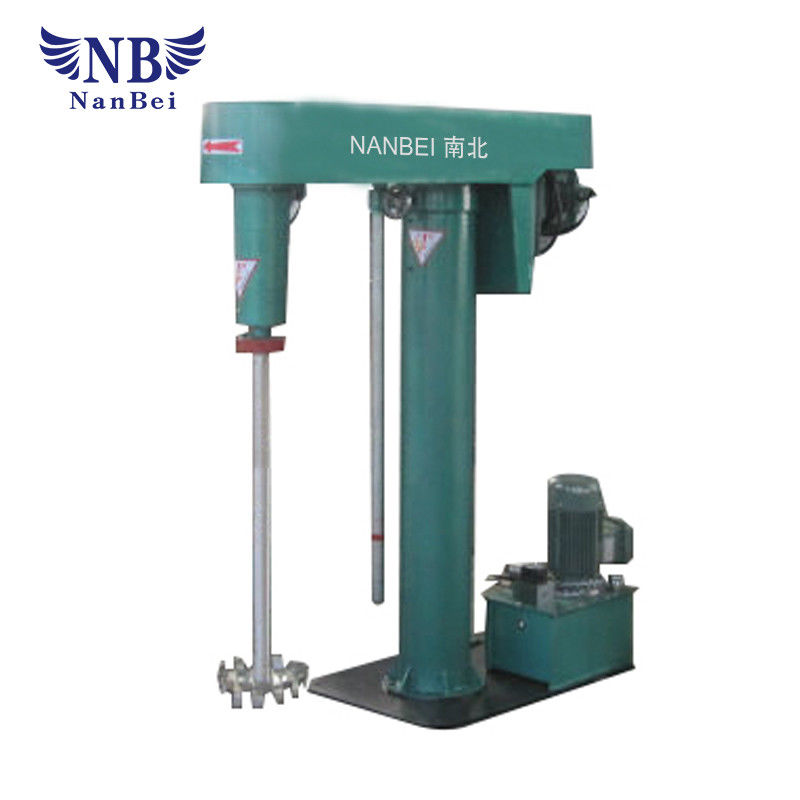

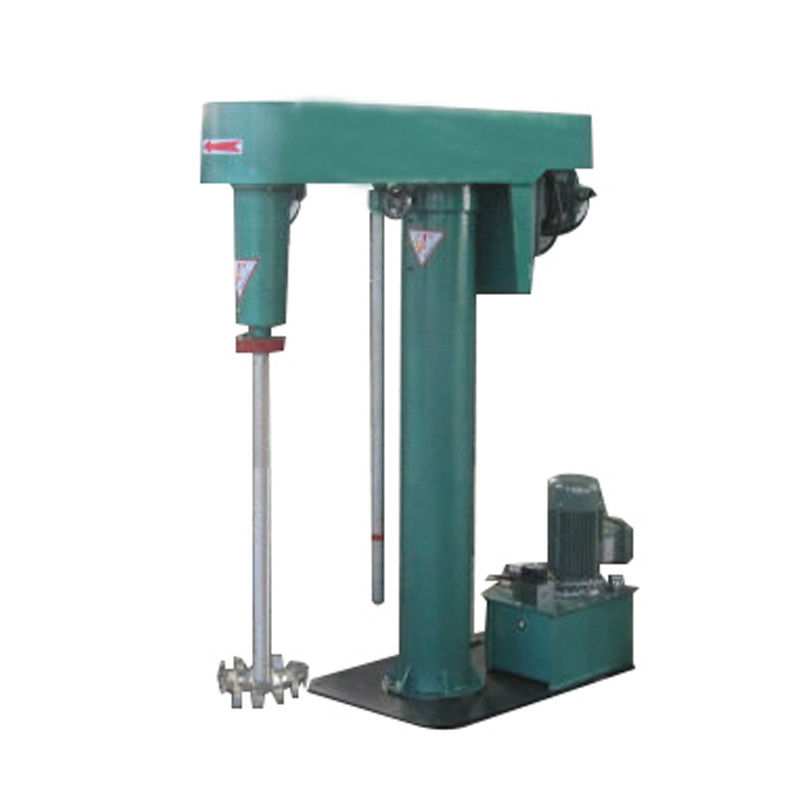

SS304 Manual Hydraulic Lifting Disperser For Paint And Pigment

Brief introduction of manual lifting disperser for paint:

Different types of lifting can be divided into hydraulic lifting disperser and mechanical lifting disperser, the speed of the disperser can be arbitrarily adjusted. Mainly by the hydraulic system, the main drive, mixing system, guide mechanism, electronic control box composed of five parts, each part of the structure is compact and reasonable. Widely used in coatings, solids for stirring and dispersing, high efficiency equipment for dissolution and chemical products such as paints, inks, pigments, and adhesives. Common types are emulsifying dispersion machines, explosion-proof dispersing machines, lifting and dispersing machines, stirring and dispersing machines, and paint dispersing machines.

2.2kw SS304 Manual Hydraulic Lifting Disperser For Paint And Pigment 0

Features of NANBEI manual lifting disperser for paint:

Configuration list :

Voltage :380V,50Hz Can be customized

Material which connect with sample :SS304 SS316L

Holding clip method:Belt holding clip, Hand holding clip, Pneumatic holding clip

Mixer shaft :Single shaft,Double shaft

Cylinder score:Optional

Lid:Simple lid,Fixed lid,lifting lid

Sealing:Forcing Vacuum extraction

Envrionment :Explosive proof, explosive

Model	NBZX2.2
Power(kw)	2.2
Speed(rpm)	80~1250
Dispersion disk diameter(mm)	150~200
Lifting range(mm)	1000
Mounting height (mm)	3100
Dimension LxWxH(mm)	1500x550x2100
Weight (kg)	600

Packing and Shipping
