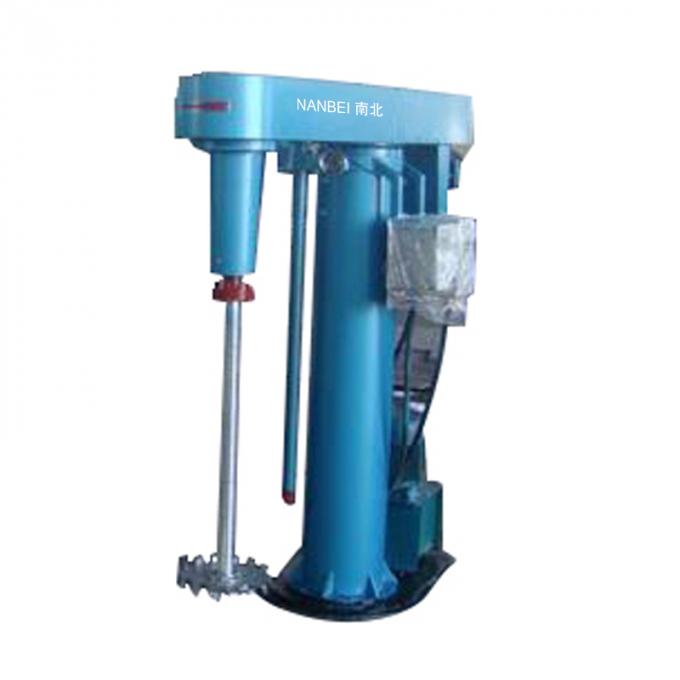

800kg Weight Paint Mixing Machine 230mm Dispersion Disk Diameter
Brief introduction of high speed paint disperser :
Hydraulic lifting and descending high speed disperion machine,suitable for pre-dispersion and
mixing uniform during producing.It has compact size,little volume,little moving inertia,fast response
time,easy to operate. Transducer can be realized large range stepless speed adjustment,automatic
over-load protection. hydraulic oil work as media for hydraulic system,relative movement can be
auto lubricate,with long work life,easy to realize rectilinear motion and machine full automatic,stable
and accurate,can be frequency lifting;Full sealling hydraulic system complete resolve the hydraulic
oil leakage problem. Can be customized sealled and explosion proof type dispersion machine.
The equipment can disper,mix for various viscosity products. Little air absorption when dispering,
sample can be dispered and disoluted very fast,partical diminution,no dead angle for mixing,easy to
clear,process range is wide,frequency speed adjustment,rotation speed digital display,running stability,
little noise,can be work long time contineously.
Features of NANBEI high speed paint disperser :
Configuration list :
Voltage :380V,50Hz Can be customized
Material which connect with sample :SS304 SS316L
Holding clip method:Belt holding clip, Hand holding clip, Pneumatic holding clip
Mixer shaft :Single shaft,Double shaft
Cylinder score:Optional
Lid:Simple lid,Fixed lid,lifting lid
Sealing:Forcing Vacuum extraction
Envrionment :Explosive proof, explosive
| Model |
NBF-7.5 |
| Capacity(L) |
≤400 |
| Power(kw) |
7.5 |
| Speed(rpm) |
0-1450 |
| Dispersion disk diameter(mm) |
230 |
| Lifting range(mm) |
900 |
| Hydraulic power(kw) |
0.55 |
| Weight(kg) |
800 |
Packing and Shipping
