5.5kw Manual Lifting Disperser Of Frequency Adjustable Speed CE Certification

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NBZX5.5
Minimum Order Quantity: 1set
Price: USD1370-USD2419/set
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Main Motor: 5.5kw Impeller Rotation: 80-1250rpm
Dispersion Plate Diameter: 200-250mm Stirring-Axis Max Stroke: 1000mm
Installation Height: 3100mm Condition: New
Advantage: Factory Directly Sale Warranty: 1 Year
After-sales Service Provided: Free Spare Parts
High Light:

lab mixing equipment

,

chemical mixture machine


Product Description



Manual Lifting Disperser Of Frequency Adjustable Speed CE Certification





Brief introduction of manual lifting disperser :

Different types of lifting can be divided into hydraulic lifting disperser and mechanical lifting disperser, the speed of the disperser can be arbitrarily adjusted. Mainly by the hydraulic system, the main drive, mixing system, guide mechanism, electronic control box composed of five parts, each part of the structure is compact and reasonable. Widely used in coatings, solids for stirring and dispersing, high efficiency equipment for dissolution and chemical products such as paints, inks, pigments, and adhesives. Common types are emulsifying dispersion machines, explosion-proof dispersing machines, lifting and dispersing machines, stirring and dispersing machines, and paint dispersing machines.

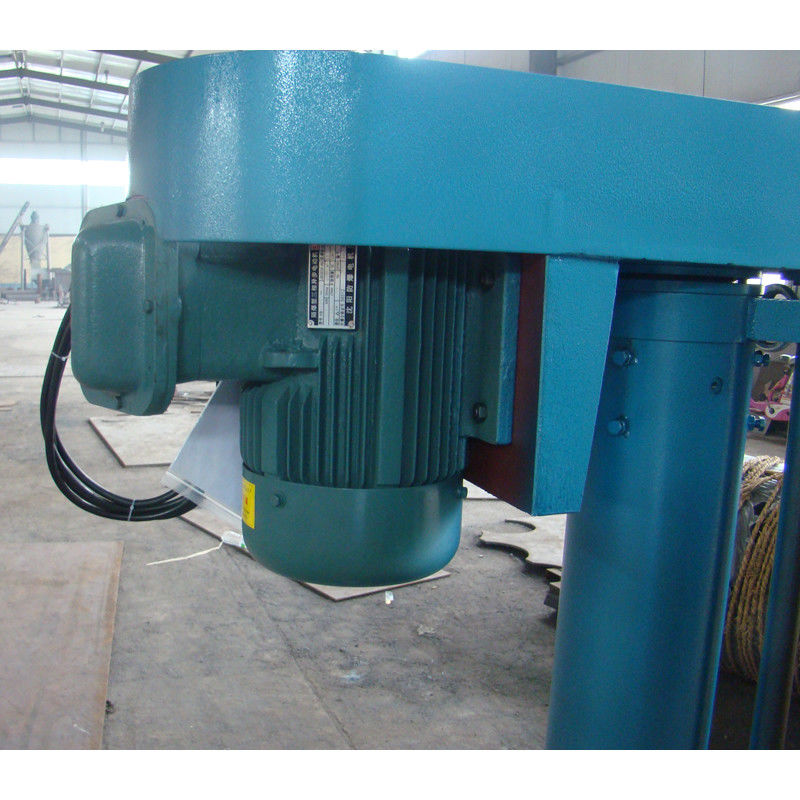

5.5kw Manual Lifting Disperser Of Frequency Adjustable Speed CE Certification 0

Features of NANBEI manual lifting disperser :

Configuration list :

Voltage :380V,50Hz Can be customized

Material which connect with sample :SS304 SS316L

Holding clip method:Belt holding clip, Hand holding clip, Pneumatic holding clip

Mixer shaft :Single shaft,Double shaft

Cylinder score:Optional

Lid:Simple lid,Fixed lid,lifting lid

Sealing:Forcing Vacuum extraction

Envrionment :Explosive proof, explosive



Model NBZX5.5
Power(kw) 5.5
Speed(rpm) 80~1250
Dispersion disk diameter(mm) 200-250
Lifting range(mm) 1000
Mounting height (mm) 3100
Dimension LxWxH(mm) 1500x550x2100
Weight (kg) 710



Packing and Shipping

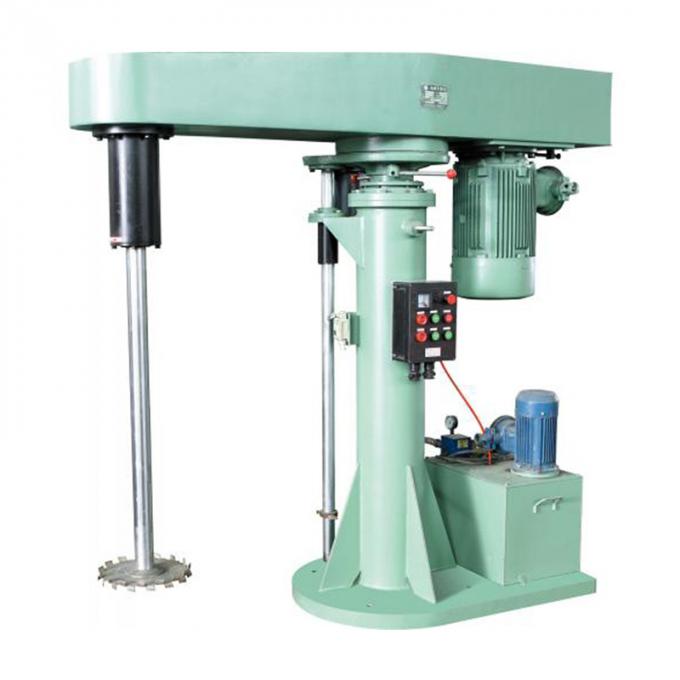

5.5kw Manual Lifting Disperser Of Frequency Adjustable Speed CE Certification 1

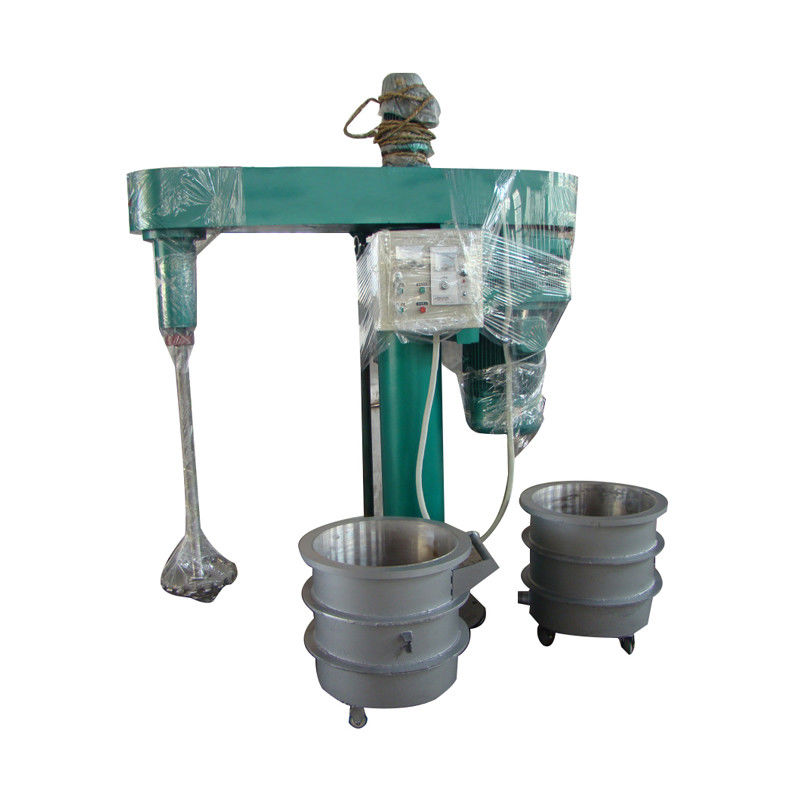

5.5kw Manual Lifting Disperser Of Frequency Adjustable Speed CE Certification 2
